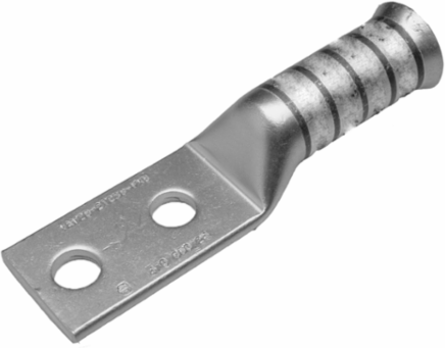

Burndy YA322NFXB HYLUGTM Non-Insulated Terminal, 1/2 Inch Stud, 2 Holes, 600V-35kV, Tin Plated
- MPN: YA322NFXB
- UPC: 781810039915
- PPN: BUR-50254W
CAD
$98.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond(Telecom), 2 Hole/W/O/InspWindow, 313.1 kcmil(775/#24)DLO, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Lng bbl, Belled End, Red, 18 Index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2-5/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.56 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 153 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.40 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 2.32 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 6.04 in |
| Dimension - Outside Diameter inch | 0.95 in |
| Dimension - Strip Length inch | 2-1/4 |
| Dimension - Z inch | 0.64 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 313.1 (775/#24) |
|---|---|
| Conductor - Copper Flex H Size | 313.1 |
| Conductor - Copper Flex K Size | 313.1 |
| Conductor - Copper Str Size | 300 kcmil |
| Conductor - Copper Flex G Size | 313.1 |
|---|---|
| Conductor - Copper Flex I Size | 313.1 |
| Conductor - Copper Flex M Size | 313.1 |
| Conductor - Material | Copper |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810039915 |
| Color Code | Red |
|---|---|
| Die Index | 18 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100399155 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
