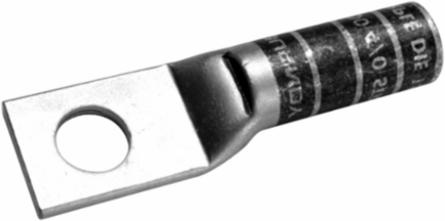

Burndy YAZV2CTC38FX HYLUGTM Non-Insulated Terminal Connector, 2 AWG, 600V-35kV, 3/8 Inch Stud
- MPN: YAZV2CTC38FX
- UPC: 781810241288
- PPN: BUR-25020503
CAD
$20.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/w/InspWindow, #2 Weld, (3(125/#24)-2(150/#24))DLO Flex, #2 AWG Code, 600 V-35 kV, 3/8" Stud, Lng bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 2.56 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 1-7/16 |
| Dimension - Z inch | 0.42 in |
| Dimension - B Length inch | 1.38 in |
|---|---|
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 65 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.68 in |
| Dimension - Stud Size inch | 3/8 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 3 (125/#24) DLO;2 (150/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 2 AWG |
| Conductor - Copper Flex H Size | 2 AWG |
| Conductor - Copper Flex I Size | 2 AWG |
| Conductor - Copper Flex K Size | 2 AWG |
| Conductor - Copper Flex M Size | 2 AWG |
| Conductor - Copper Str Size | 2 AWG |
| Conductor - CopperWeld Str Size Range | 2 A AWG-2 P AWG |
| Conductor - Copper DLO Size Range | 3 (125/#24) DLO-2 (150/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 2 AWG |
| Conductor - Copper Flex H Size Range | 2 AWG |
| Conductor - Copper Flex I Size Range | 2 AWG |
| Conductor - Copper Flex K Size Range | 2 AWG |
| Conductor - Copper Flex M Size Range | 2 AWG |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818102412888 |
| Color Code | Brown |
|---|---|
| Die Index | 10 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810241288 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
