Burndy YAG36LTC38FX Non-insulated; Tin Plated YAG36LTC38FX
- MPN: YAG36LTC38FX
- UPC: 781810259108
- PPN: BUR-26000258
CAD
$74.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

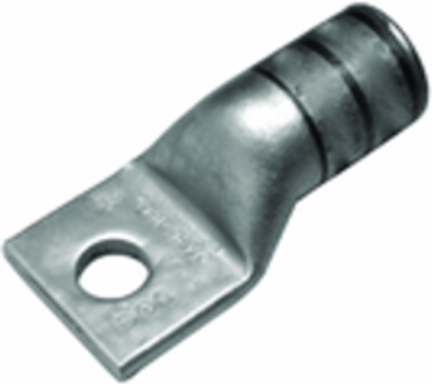

Copper Compression Terminal
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Length Overall inch
- 3.27 in
- Dimension - Outside Diameter inch
- 1.19 in
- Dimension - Strip Length inch
- 1/2 in
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch1.38 in
Dimension - Bolt Size fraction3/8
Dimension - L Length Overall mm83 mm
Dimension - N inch0.50 in
Dimension - Pad Width inch1.73 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 8 AWG (37/24)
- Conductor - Copper Flex H Size
- 450 kcmil
- Conductor - Copper Flex K Size
- 450 kcmil
- Conductor - Material
- Copper
Conductor - Copper Flex G Size450 kcmil
Conductor - Copper Flex I Size450 kcmil
Conductor - Copper Flex M Size450 kcmil
General
- Color Code
- Brown
- Die Index
- 49
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818102591088
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810259108
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
