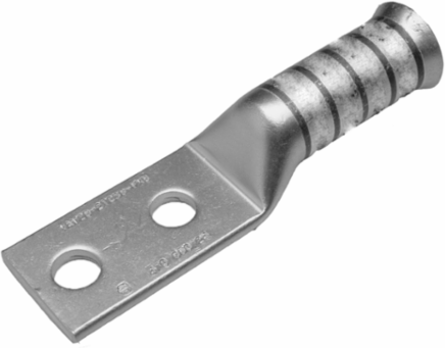

Burndy YAV282NFXB HYLUGTM Tin Plated Terminal, 4/0 AWG, 1/2 Inch Stud, 35 kV
- MPN: YAV282NFXB
- UPC: 781810046265
- PPN: BUR-518642
CAD
$60.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond(Telecom), 2 Hole/W/O/InspWindow, 4/0 Str,4/0(550/#24)DLO,4/0 AWG Code, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Lng bbl, Belled End.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - D inch | 3.01 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 5.39 in |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Strip Length inch | 1-7/8 |
| Dimension - Thread Size | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.77 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 137 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.14 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z inch | 0.64 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 4/0 AWG |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Temperature Rating | 194 |
| Type | Long Barrel, Tin Plated |
| UPC 12 Digit | 7818100462655 |
| Color Code | Purple |
|---|---|
| Die Index | 15 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| UPC | 781810046265 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
