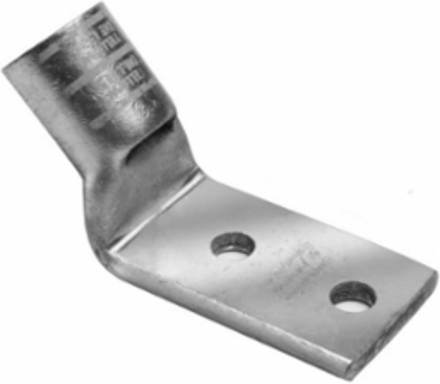

Burndy YAV28L2NTCFX45 Non-Insulated Copper Terminal, 4/0 AWG, 1/2 Inch Stud, 2 Holes, 45 Degree Angle
- MPN: YAV28L2NTCFX45
- UPC: 781810022351
- PPN: BUR-518471
CAD
$55.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Comp Terminal, 2 Holes W/InspWindow, 4/0 Weld, 4/0(550/#24)DLO Flex, 4/0 AWG Code, 200 Navy, 1/2" Stud, 1.75" Spacing, 45 Deg Bent, Standard Brrl
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - D inch | 3.03 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 114 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.14 in |
| Dimension - Thread Size | 1/2 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - B Length inch | 1.03 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Height inch | 1.70 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 4.49 in |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Strip Length inch | 1-1/16 |
| Dimension - Z inch | 0.65 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 4/0 AWG |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Conductor - Copper Str Navy Size Range | 200 (61) Navy |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Conductor - CopperWeld Str Size Range | 4/0 E AWG-4/0 V AWG |
General
| Color Code | Purple |
|---|---|
| Die Index | 15 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810022351 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100223511 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 25 |
|---|
