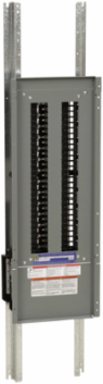

Square D NQ54L4C Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Square D NQ54L4C Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
- MPN: NQ54L4C
- UPC: 785901049081
- PPN: SCH-NQ54L4C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1981.92/ EA
Description
Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Specifications
Physical Attributes
- Enclosure Nominal Height
- 68 in
Enclosure Nominal Width20 in
Complementary Attributes
- Ue Rated Operational Voltage
- 240 V AC, 48 V DC
- Line Rated Current
- 400 A
Iu Rated Interrupted Current10 kA, 22 kA, 65 kA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Iu Rated Interrupted Current
- 10 kA, 22 kA, 65 kA
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 22 kg CO2 eq., 22.2106845092
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 61 kg CO2 eq., 61.2565713078
- Certificate Agency
- CSA, UL
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Panel components
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Load Center Type
- main lugs
- Number Of Spaces
- 54
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- No
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 100.21
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Offer Owner Code
- 190788
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque42.37-42.37 N.m 53.48-152 mm² (AWG 1/0...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (AWG 1/0...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (AWG 1/0...750 kcmil)
Carbon Footprint Of The Distribution Phase A42.7457049641, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.3516473819, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B645 kg CO2 eq., 44.7040371444
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
H And D SubrangeCOM
H And D Enrichment FunctionENCLOSURES
H And D Enrichment Class 4Panelboard interior
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Materialcopper
Phase1 phase 3 wires
Product Or Component Typeinteriors
Software Versionv5.9.4
Total Lifecycle Carbon Footprint131 kg CO2 eq.
Pep CodeENVPEP2303004EN
Pep Verification Date2023-07-15
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential, In %93
Pn1
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 131.2686453074
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase 3 wires
Product Or Component Typeinteriors
Specifications
- Country of Origin
- Mexico, United States
