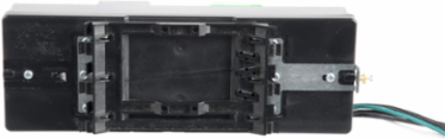

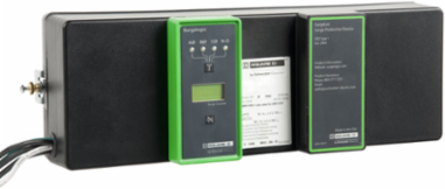

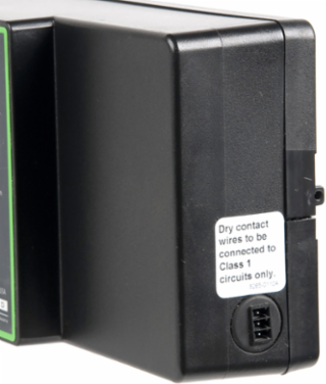

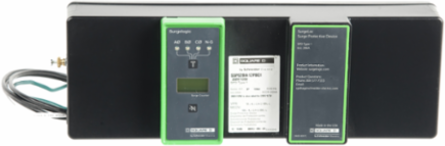

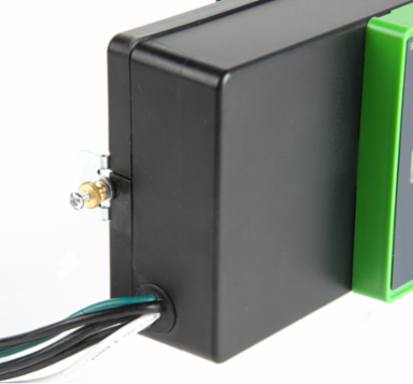

Square D SSP01SBA08D Surge protection device, Surgelogic, 80kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
- MPN: SSP01SBA08D
- UPC: 785901774914
- PPN: SCH-SSP01SBA08D
- UNSPSC: 39121634
CAD
$2538.11
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. Being the industry's first field installable internally mounted SPDs in NQ panelboards, this unit is able to provide a surge current rating of 80,000 Amps. With a surge current rating of 80,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety NQ Panelboards.
Features
- Installs in two minutes or less
- Easy field mounting and retrofitting
- Audible, visual, and remote signaling
- Manages both thermal and high current events
- Advanced diagnostics
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 175.26 mm |
| Weight | 3400 g |
|---|
Complementary Attributes
| Uc Maximum Continuous Operating Voltage | 150 V |
|---|
| Ue Rated Operational Voltage | 120/240 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 2.285415610354451, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.3508869795263079, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 71 kg CO2 eq., 71.34340337471716 |
| Local Publishable Date | 2026-09-05 |
| Device Type | Surge Protection and Power Conditioning - Surge Protection Devices |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Surgelogic |
| Software Version | v6.3.2 |
| Total Lifecycle Carbon Footprint | 132 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Data Source | extrapolated product |
| Width Nominal | 454.66 mm |
| Customs Code | 8536308000 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 2010 |
| Recyclability Potential In % | 7 |
| Persona Type Names | End User, Contractor |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 6 kg CO2 eq., 5.63866209958553 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 52 kg CO2 eq., 51.779387398561845 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2607150EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Phase | 1 phase |
| Product Or Component Type | surge protection device |
| Returnability | Yes |
| Sustainable Packaging | No |
| Type Of Packing | box |
| Database Version | 2026-04 |
| Height Nominal | 111.76 mm |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Protection | 200 kA |
| Functional Unit Description | Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 150 V, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 700.8 |
| Pep End Of Validity Date Calculated | 2031-10-01 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 132.3977554627453 |
| Environmental Disclosure | ENVPEP2607150EN |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2607150EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2607150EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-10-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Surgelogic |
| Product Or Component Type | surge protection device |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 80 kA per phase |
|---|
Input Attributes
| Input Voltage | 600 V N - G700 V L-N, 700 V L - G1000 V L - L |
|---|
