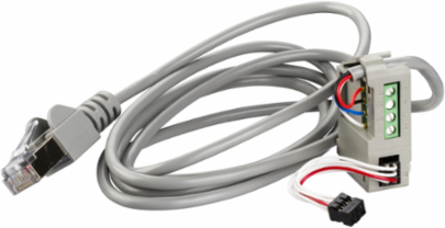

ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC
Schneider Electric

Schneider Electric LV434202 ULP wiring accessory, ComPacT NSX, NSX cord, 3m length, voltage below 480VAC

  • MPN: LV434202
  • PPN: SCH-LV434202

CAD

$747.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

NSX cord is an ULP wiring accessory that connects Compact NSX devices to ULP devices. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. NSX cord is compatible with PowerPact multistandard products. NSX cord is equipped with one RJ45 connector for the connection to ULP devices. NSX cord is connected on the Compact NSX BSCM module for both communication and 24VDC power supply. The length is 3 m.

Documentation & Downloads

Specifications

Key Specifications

Length
3 m
Country of OriginBrazil, China, France, Mexico, United States

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Range Of Product
ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC
Carbon Footprint Of The Distribution Phase [A4]
0.014645858, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.081424256, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Traceability
No
Weee Applicability
Finished product
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Device Short Name
cord L = 3 m
Localisation On Device
internal
Mounting Mode
by clips
Product Or Component Type
terminal block connector
Returnability
Yes
Sustainable Packaging
Yes
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Enerlin'X is used to acquire device status indications and control the communicating remote-control function, also a memory used to manage the maintenance, and NSX cord is to connect ComPacT NSX to the ULP devices (FDM121 display, IFM, IFE or I/O) unit for 10 years.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %
4
Halogen-free Status
Product contains halogen above thresholds
Package Weight(Lbs)
107.800 g
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage<= 480 V, <= 480 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.117063066
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.787826087
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-07-10
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2306004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1902
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Connector Type1 RJ45
Energy Efficiency OptimizedFalse
Location Of Connectioninside
Product AvailabilityStock - Normally stocked in distribution facility
RangeComPact
Software Versionv5.9.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Pep CodeENVPEP2306004EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Length Total3 m
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544429090

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance
Product contains halogen above thresholds
Mercury Free
Yes
Circularity Profile
ENVEOLI2306004EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-12-03
Psr Version
PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint3.000959268
Environmental DisclosureENVPEP2306004EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2306004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Range Of Product
ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC
Product Or Component Typeterminal block connector

ETIM

ETIM 8
EC002498
ETIM 9EC002498

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
