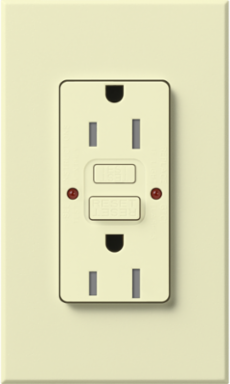

Lutron NTR-15-GFST-AL 15A Tamper-Resistant Self-Testing GFCI Receptacle, Almond Finish, Wallbox Mount
- MPN: NTR-15-GFST-AL
- UPC: 784276158312
- PPN: LUT-NTR-15-GFST-AL
- UNSPSC: 39121406
CAD
$163.48
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Coordinate Lutron lighting controls and switches with the Lutron Architectural Matte GFCI Receptacle to complement your clients' décor. This self-testing GFCI receptacle automatically verifies protection every 30 seconds, helping ensure critical safety functions remain operational. An integrated LED status indicator provides clear visual confirmation of device status for added peace of mind, while a permanently installed tamper-resistant shutter mechanism helps prevent the insertion of foreign objects into the receptacle openings. Designed for quick and reliable installation, it features both screw-terminal and push-in wiring options. Available in 10 matte finishes, Lutron Architectural receptacles serve as elegant design elements that help customize and elevate the look of any space. For a polished, coordinated aesthetic, pair with Lutron Nova T Wall Plates (sold separately).
Features
- Self-testing technology allows GFCI to automatically check proper operation every 30 seconds. LEDs indicate status of GFCI protection function. Press reset button to reset GFCI after circuit interruption. Includes 1-gang wallplate.
- Continuous self-test cuts power if GFCI protection is lost due to component damage. Testing begins within 2.5 seconds and automatically repeats every 30 seconds or less.
- Manual test feature incorporates a comprehensive system test that simulates a ground-fault leakage current, causing the GFCI to respond and verify proper protection.
- Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket, quick and dependable termination.
- Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
- LEDs indicate status of GFCI protection function
- Press reset button to reset GFCI after circuit interruption
- Includes 1-gang wallplate
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15 A |
|---|---|
| Decorative Color | Almond |
| Family Color | Beige |
| Number of Poles | 2 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 14 |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Color | Almond |
| Size | 4.56 x 2.75;116 x 70 in;mm |
| Connection | Screw terminal |
|---|---|
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| NEMA Rating | 5-15R |
| Number of Wires | 3,4,5 |
| Type | Tamper-resistant, self-testing GFCI receptacle |
| Wattage | 1875 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Temperature Rating | 32 to 104 F |
| Finish | Matte |
