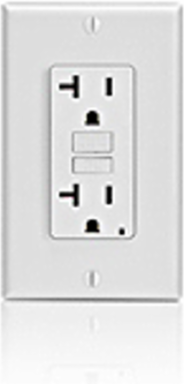

Leviton N7899-GY 20 Amp SmartLock Pro Slim GFCI Receptacle, 125 Volt, Gray, Back & Side Wired
- MPN: N7899-GY
- PPN: LEV-N7899-GY
CAD
$16.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Slim is in. New SmartlockPro Slim GFCIs Install Easily Industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro Slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque.
Specifications
Standards and Certifications
- NEMA
- WD-6
- UL498
- Yes
- NOM
- 057
- MIL-SPEC
- A-A-55459-SB
- CSA-C22.2 No. 144.1-06
- File LR-57811
ANSIC-73
CSA C22.2 No. 42Yes
UL 943File E48380
Fed Spec WC-596Yes
Material Specifications
- Face Material
- Thermoplastic
- Line Contacts
- Brass Triple Wipe .031 Thick
- Grounding Screw
- Plated Steel
- Clamps
- Brass
Body MaterialPolycarbonate
Terminal ScrewsPlated Steel
YokeZinc-Plated Steel
Notesw/ Wallplate
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Product ID
- Ratings are permanently marked on device
Terminal Accom.14-10 AWG
Product Features
- Feature
- SmartlockPro Slim
- Voltage
- 125 Volt
- Pole
- 2
- Trip Level
- Class A, 5mA plus or minus 1mA
- Face Material
- Thermoplastic
- Grounding
- Self-Grounding
- Color
- Gray
- Fed Spec WC-596
- Yes
- Notes
- w/ Wallplate
- Country of Origin
- China
Amperage20 Amp
NEMA5-20R
Wire3
TerminationBack & Side
Body MaterialPolycarbonate
Strap MaterialGalvanized Steel
Standards and CertificationsUL/CSA
Warranty2-Year Limited
GradeResidential
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-35C-+66C
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Short Circuit Current Rating10KA
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
