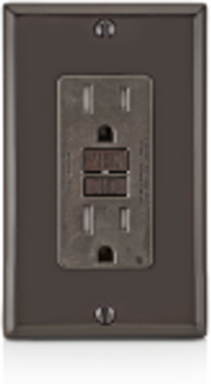

Leviton X7599 SmartlockPro 15 Amp GFCI Receptacle, Tamper-Resistant, 125 Volt, Brown
- MPN: X7599
- PPN: LEV-X7599
CAD
$14.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Slim is in. New SmartlockPro Slim GFCIs Install Easily Industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro Slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque. Tamper-Resistant to meet current NEC Requirements for new or renovated residential construction.
Specifications
Standards and Certifications
| NEMA | WD-6 |
|---|---|
| UL498 | Yes |
| NOM | 057 |
| MIL-SPEC | A-A-55459-SB |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| ANSI | C-73 |
|---|---|
| CSA C22.2 No. 42 | Yes |
| UL 943 | File E48380 |
| Fed Spec WC-596 | Yes |
Material Specifications
| Face Material | Thermoplastic |
|---|---|
| Line Contacts | Brass Double-Wipe .031 Thick |
| Grounding Screw | Plated Steel |
| Clamps | Brass |
| Body Material | Polycarbonate |
|---|---|
| Terminal Screws | Plated Steel |
| Yoke | Zinc-Plated Steel |
| Notes | w/ Wallplate |
Mechanical Specifications
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
|---|
Product Features
| Feature | Tamper-Resistant |
|---|---|
| Voltage | 125 Volt |
| Pole | 2 |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Face Material | Thermoplastic |
| Grounding | Self-Grounding |
| Color | Brown |
| Fed Spec WC-596 | Yes |
| Notes | w/ Wallplate |
| Country of Origin | China |
| Amperage | 15 Amp |
|---|---|
| NEMA | 5-15R |
| Wire | 3 |
| Termination | Back & Side |
| Body Material | Polycarbonate |
| Strap Material | Galvanized Steel |
| Standards and Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| Grade | Residential |
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -35C-+66C |
|---|
Electrical Specifications
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
|---|---|
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Short Circuit Current Rating | 10KA |
|---|
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
