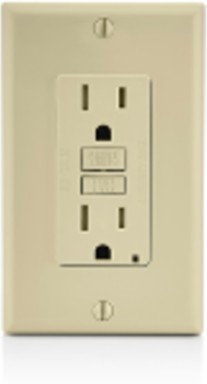

Leviton X7599-I SmartlockPro 15 Amp GFCI Receptacle, Tamper-Resistant, Ivory, 125 Volt
Leviton X7599-I SmartlockPro 15 Amp GFCI Receptacle, Tamper-Resistant, Ivory, 125 Volt
- MPN: X7599-I
- PPN: LEV-X7599-I
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$14.86/ EA
Description
Slim is in. New SmartlockPro Slim GFCIs Install Easily Industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro Slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque. Tamper-Resistant to meet current NEC Requirements for new or renovated residential construction.
Specifications
Standards and Certifications
- NEMA
- WD-6
- UL498
- Yes
- NOM
- 057
- UL 943
- File E48380
- Fed Spec WC-596
- Yes
ANSIC-73
CSA C22.2 No. 42Yes
MIL-SPECA-A-55459-SB
CSA-C22.2 No. 144.1-06File LR-57811
Material Specifications
- Face Material
- Thermoplastic
- Line Contacts
- Brass Double-Wipe .031 Thick
- Grounding Screw
- Plated Steel
- Clamps
- Brass
Body MaterialPolycarbonate
Terminal ScrewsPlated Steel
YokeZinc-Plated Steel
Notesw/ Wallplate
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Product ID
- Ratings are permanently marked on device
Terminal Accom.14-10 AWG
Product Features
- Feature
- Tamper-Resistant
- Voltage
- 125 Volt
- Pole
- 2
- Trip Level
- Class A, 5mA plus or minus 1mA
- Face Material
- Thermoplastic
- Grounding
- Self-Grounding
- Strap Material
- Galvanized Steel
- Fed Spec WC-596
- Yes
- Notes
- w/ Wallplate
- Country of Origin
- China
Amperage15 Amp
NEMA5-15R
Wire3
TerminationBack & Side
Body MaterialPolycarbonate
ColorIvory
Standards and CertificationsUL/CSA
Warranty2-Year Limited
GradeResidential
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-35C-+66C
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
Short Circuit Current Rating10KA
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
