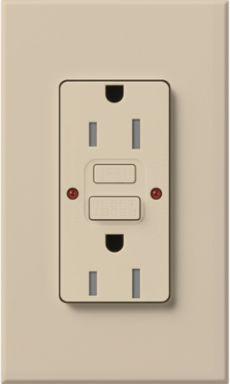

Lutron NTR-15-GFST-TP 15A Self-Testing GFCI Receptacle, Tamper-Resistant, Taupe, 125V, Wallbox
- MPN: NTR-15-GFST-TP
- UPC: 784276158398
- PPN: LUT-NTR-15-GFST-TP
- UNSPSC: 39121406
CAD
$163.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15A Self-Testing GFCI Receptacle, Tamper-Resistant, Taupe, 125V, Wallbox
Features
- Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing "continuous self-testing" that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
- Manual Test - this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, causing the mechanical system to react based on the action of the solenoid.
- Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
- Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
- Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
- Internal back wiring clamp and guide pocket, quick and dependable termination.
- Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
- LEDs indicate status of GFCI protection function
- Press reset button to reset GFCI after circuit interruption
- Includes 1-gang wallplate.
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15 A
- Decorative Color
- Taupe
- Family Color
- Gray
- Number of Poles
- 2
- Temperature Rating, Maximum
- 104 F
- Voltage Rating
- 125
- Wire Size
- 10 to 14
- Material
- Plastic/Metal
- Mounting
- Wallbox
- Color
- Taupe
- Size
- 4.56 x 2.75;116 x 70 in;mm
ConnectionScrew terminal
Environmental Conditions0 to 90% humidity, non-condensing
NEMA Rating5-15R
Number of Wires3,4,5
TypeTamper-resistant, self-testing GFCI receptacle
Wattage1875 W
InsulationPlastic
Material QualityPlastic/Metal
Temperature Rating32 to 104 F
FinishMatte
