Hub Connector
Ocal

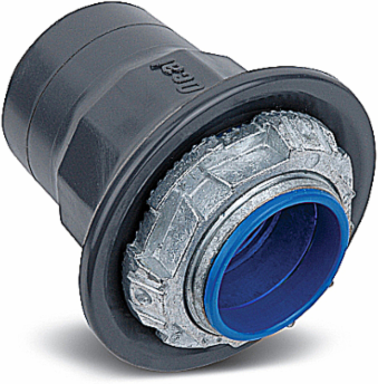

Ocal HUB11/2-G Hub Connector

  • MPN: HUB11/2-G
  • UPC: 704508388249
  • PPN: T-B-HUB11/2-G

CAD

$163.65

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/2 Inch/41 Metric, Overall Diameter 2.75 Inch/69.85 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.53 Inch/38.86 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Features

  • Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
  • Innovative sealing ring and groove.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Pressure sealing sleeves to protect the connection.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121311 Electrical fittings
Brand Name
Ocal
Special Features
Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
Standard
CSA
Material
PVC Coated Zinc
Temperature Rating
105 Degrees C
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
Size1-1/2 Inch/41mm
ColorDark Gray

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Nominal size in inch
1 1/2 inch
Revolving thread
N
Material housing
Other
Nominal diameter41mm
ModelStraight
Construction typeExternal thread
Surface protectionOther

Packaging

Outer Quantity
25
Weight Uom
0.68 lbs. Each
Outer Dimensions (inches)15.12x13.25x7
