Ocal HUB21/2-G Hub Connector
- MPN: HUB21/2-G
- UPC: 704508388522
- PPN: T-B-HUB21/2-G
CAD
$368.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

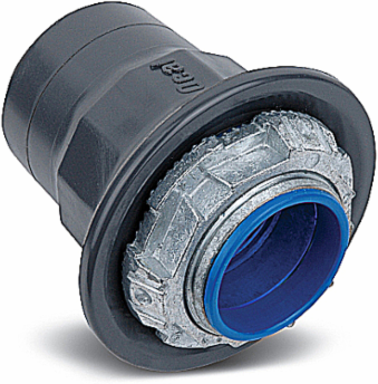

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 2-1/2 Inch/63 Metric, Overall Diameter 3.75 Inch/95.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.41 Inch/61.21 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Features
- Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
- A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
- Innovative sealing ring and groove.
- Hexagonal body and locknut design.
- Insulated throat and sharper and deeper teeth.
- Pressure sealing sleeves to protect the connection.
Documentation & Downloads
Specifications
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 15x13x7
Outer Quantity10
Weight Uom240 lbs. per 100
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 2 1/2 inch
- Revolving thread
- N
- Material housing
- Other
Nominal diameter63mm
ModelStraight
Construction typeExternal thread
Surface protectionOther
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Ocal
- Special Features
- Hexagonal/Splined Body and Locknut Enables Fast and Easy Installation
- Standard
- CSA
- Material
- PVC Coated Zinc
- Temperature Rating
- 105 Degrees C
IGCC4441 Electrical fittings
TypeHub Connector
ApplicationTo Positively Bond Conduit to Box or Enclosure
Size2-1/2 Inch/63mm
ColorDark Gray
