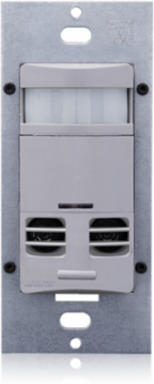

Leviton OSSMT-GDG Occupancy Sensor Wall Switch, Multi-Technology PIR/Ultrasonic, 2400 Sq.Ft., 120-277V
Leviton OSSMT-GDG Occupancy Sensor Wall Switch, Multi-Technology PIR/Ultrasonic, 2400 Sq.Ft., 120-277V
- MPN: OSSMT-GDG
- UPC: 078477406991
- PPN: LEV-OSSMT-GDG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$125.02/ EA
Description
Product Line: Occupancy Sensor, OSSMT, Lighting Control, Technology: Multi-Technology PIR/Ultrasonic, Switch Type: Single-Pole, Mounting: Wall Switch, Coverage (Sq.Ft.): 2400 Sq. Ft., Pattern: 180°, Color: Grey, Warranty: 5-Year Limited
Features

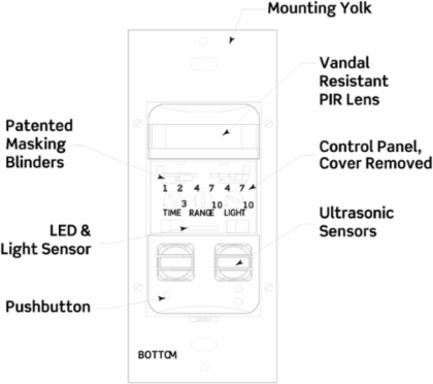

- Fast, simple Installation: Fits in a standard wall box and replaces a single-pole wall-switch; neutral and no neutral options available. Sensor can be ganged together with other units in a multiple-switch wall plate.
- Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
- Convenient Pushbutton provides manual-ON/OFF light switching at any time.
- Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
- Vandal resistant PIR lens.
- Adjustable horizontal field-of-view (PIR may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens). No masking required.
- Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
- To comply with CED Title 24, LED indicator light flashes when sensor detects motion to verify detection is active. Green flashes for ultrasonic, red flashes for PIR.
- Time: The delayed OFF time is preset at 30 minutes in the Auto Adapting mode. A choice of four delayed-OFF time settings are available: 30-seconds (for walking test purposes only), 10, 20, and 30 minutes for fixed time and auto adapting. The LED will flash when the adjusting knob is set to the indicated time value.
- Ambient Light Recognition: Integrated light sensor prevents lights from turning on when the room is adequately illuminated by natural light.
- Self-Adaptive Technology: Callbacks for adjustment are eliminated. Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode.
- Exclusive Walk-through Feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
- Vacancy Confirmation: When the time out expires and the relays turn OFF, a 30 second (OSSMT-G) or 40 second (OSSMT-M) vacancy confirmation exists to turn the relays back on.
- False detection circuitry.
- Small Motion Sensitivity (U/S): Ultrasonic technology provides excellent minor motion sensitivity.
- Ability to disable U/S (OSSMT-M). For added flexbility, OSSMT-G has the ability to disable both PIR and U/S.
- Presentation Mode feature: For slide or film presentations, allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
- Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
- True Zero-Cross Relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts.
- Leviton’s OSSMT Multi-Technology Decora Wall Switch Occupancy Sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications. A wallbox occupancy sensor switch is a lighting control also known as a motion sensor or motion detector, part number OSSMT-GDE. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- ETL/cETL Listed, CSA
- USMCA Compliant
- Yes
Title 24 CompliantYes
Performance Specifications

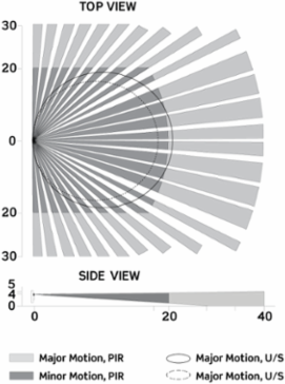

- Coverage (Sq.Ft.)
- 2400
Pattern180°
Mechanical Specifications
- Mounting Type
- Wall Switch
- Switch Type
- Single-Pole

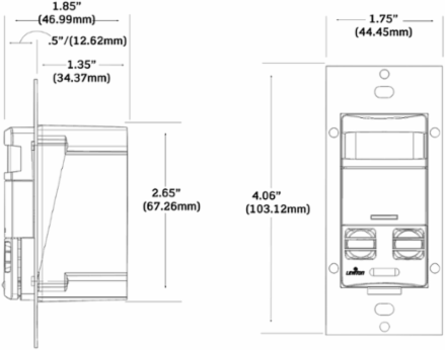

SizeHeight 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Retrofit|Private and Executive Offices|Conference Rooms|Storage Areas|Restrooms|Classrooms|Lounges|Training Areas|Multi-Location Switching
- Grade
- Commercial
- Product Line
- OSSMT
- Sensor Type
- Occupancy
ColorGray
MountingWall Switch
Sensor TechnologyMulti-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Time Delay30s - 30m
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Relative Humidity20% to 90% non-condensing
Electrical Specifications
- Frequency
- 50/60Hz
- Neutral Wire Connection
- Not Required
- Voltage
- 120-277 VAC
Load RatingIncandescent/Tungsten: 800W @ 120V Fluorescent: 1200VA @ 120V 2700VA @ 277V, 1500VA @ 347V Motor: 1/4 HP @ 120V
Power ConsumptionU/S and PIR: 120V 110mW, 277V 340mW - PIR only: 120V 70mW, 277V 310mW

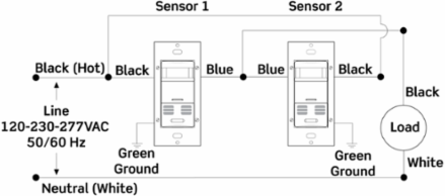

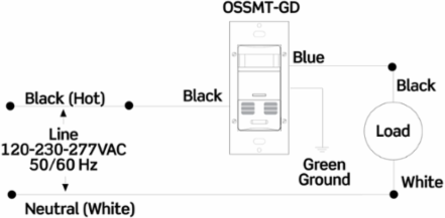

WiringLine-Black, Neutral-White, Load-Blue, Ground-Green
Type
- Product Type
- Occupancy Sensor
