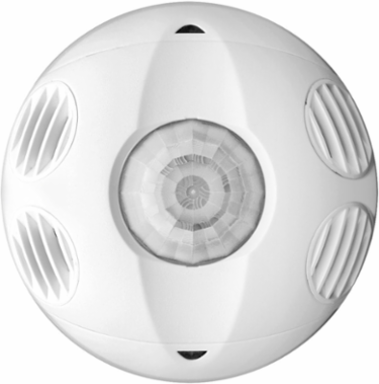

Leviton OSC10-RMW Ceiling Mount Occupancy Sensor, 1000 Sq Ft, Multi-Technology, 360° Coverage
- MPN: OSC10-RMW
- UPC: 078477543504
- PPN: LEV-OSC10-RMW
CAD
$417.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 1000 sq ft, 24VAC/VDC, Multi-Technology, 1A 30VAC/DC Isolated Relay, Extra Mid-Range Lens Assembly (for mounting between 8'-20'), Title 24 Compliant, USMCA Compliant, Color: Global White
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Conference Rooms, Office Private, Office Executive, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, Work Space General, Workout Facility or Gymnasium
- Occupancy Sensors have two tasks: 1) Keeping the lights ON while the room is occupied, and 2) Saving energy by keeping the lights OFF while the room is unoccupied. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24 Part 6 occupancy sensing requirements
Title 24 CompliantYes
Performance Specifications
- Coverage (Sq.Ft.)
- 1000
Pattern360°
Mechanical Specifications
- Mounting Type
- Ceiling Mount
- Size
- Width 4.20" (106.68mm), Depth 1.57" (39.90mm)
Relay TypeIsolated Relay
Product Features
- Application
- Cafeterias|Classrooms|Computer rooms|Conference rooms|Day care centers|Stairwells|Workspaces|Executive|Open warehouses|Restrooms and private offices|Offices with cubicles
- Grade
- Commercial
- Mounting Height (Ft.)
- Low-range lens (default, black) 8-12 feet - Mid-range lens (red) 12-20 feet
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Time Delay
- 30s-30m
ColorWhite
MountingCeiling Mount
Product LineOSC10
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Frequency
- 40kHz
- Power Consumption
- 35mA
Isolated Relay1A @ 30VAC/VDC
Voltage24 VDC
Type
- Product Type
- Occupancy Sensor
