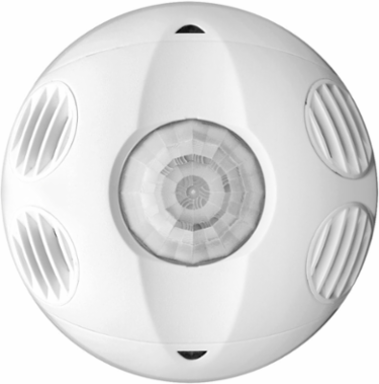

Leviton OSC20-RMW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, 2000SF, Isolated Relay, White
Leviton OSC20-RMW Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, 2000SF, Isolated Relay, White
- MPN: OSC20-RMW
- UPC: 078477543535
- PPN: LEV-OSC20-RMW
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$440.50/ EA
Description
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 2000 sq ft, 24VAC/VDC, Multi-Technology, 1A 30VAC/DC Isolated Relay, Extra Mid-Range Lens Assembly (for mounting between 8'-20'), Title 24 Compliant, USMCA Compliant, Color: Global White
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, or Gymnasium
- Occupancy sensors have two tasks: 1) Keeping the lights ON while the room is occupied, and 2) Saving energy by keeping the lights OFF while the room is unoccupied. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24 Part 6 occupancy sensing requirements
Title 24 CompliantYes
Performance Specifications
- Coverage (Sq.Ft.)
- 2000
Pattern360°
Mechanical Specifications
- Mounting Type
- Ceiling Mount
- Size
- Width 4.20" (106.68mm), Depth 1.57" (39.90mm)
Relay TypeIsolated Relay
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Cafeterias, Classrooms, Computer rooms, Conference rooms, Day care centers, Stairwells, Workspaces, Executive, open, Restrooms and private offices, Offices with cubicles
- Grade
- Commercial
- Mounting Height (Ft.)
- Low-range lens (default, black) 8-12 feet - Mid-range lens (red) 12-20 feet
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Time Delay
- 30s-30m
ColorTrue White
MountingCeiling Mount
Product LineOSC20
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Frequency
- 32kHz
- Output Power
- 24 VDC active high logic control signal with short circuit protection
- Voltage
- 24 VDC
Isolated Relay1A @ 30VAC/VDC
Power ConsumptionDC: 32mA - AC: 50mA
Type
- Product Type
- Occupancy Sensor
