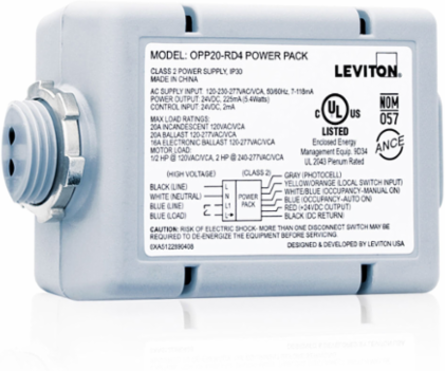

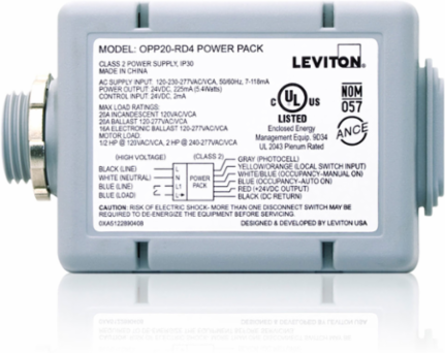

Leviton OPP20-RD4 Occupancy Sensor Power Pack, Super Duty, Auto-ON, Manual-ON, Local Switch, and Photocell inputs
Leviton OPP20-RD4 Occupancy Sensor Power Pack, Super Duty, Auto-ON, Manual-ON, Local Switch, and Photocell inputs
- MPN: OPP20-RD4
- UPC: 078477634028
- PPN: LEV-OPP20-RD4
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$98.66/ EA
Description
20A Power Pack for Occupancy Sensors features include Auto ON, Manual ON, Local Switch, Photocell, Latching Relay; Line Voltage Input: 120/208/220/230/240/277V, 50/60Hz; Low Voltage:(24VDC)Input-2mA, Output-225mA. Housing: 1/2" Threaded nipple w/locknut (fits on or in a 4" sqr box), RoHS Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant, Color: Gray
Features
- First true industry-exclusive “fail safe” design assures lights ON meeting life safety requirements of NFPA 101
- Robust power pack meets intense plug load control requirements of CA Title 24/ASHRAE 90.1
- Industry exclusive Switched Daylighting Power Pack models for use with Wall Switches, Occupancy Sensors and Photocells
- Robust and reliable mechanical latching relays specifically designed to operate LED’s and high inrush electronic ballast loads
- Surpasses industry standards for short circuit protection (NEMA 410 16 Amp ballast overload testing)
- Tested to exceed 1.5 million switching cycles under standard load
- Built in manual ON switching control to meet CA Title 24 standards
- Models support a wide range of applications including switched daylighting, occupancy sensing control, bi-level switching, and metering/mechanical applications
- Overloaded at 16A
- The Leviton OPP20 Super Duty Power Pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today’s challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- UL/cUL Listed, FCC Certified, NOM Certified, can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements, RoHs Compliant
Title 24 CompliantYes
Mechanical Specifications
- Construction
- Case: high impact, UL rated plastic - Relay: 60A rated magnetic latching relay; silver alloy contacts - Wire: 6" leads, 18AWG input; 14AWG load; LV connections: 8" leads 22AWG
- Size
- Height 2.40" (60.96mm), Width 3.81" (96.80mm), Depth 1.43" (36.37mm)
Relay TypeLatching
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements, Auto-ON/auto-OFF with local switch, Manual-ON/auto-OFF with local switch
- Feature
- Exclusive patented self-detect configurable local switch input - momentary or maintained, Configurable for auto-ON and manual-ON occupancy sensor inputs, Photocell ready
- Power Pack
- Auto-ON, Manual-ON, local switch, and Photocell input
- Sensor Type
- Accessory
ColorGray
GradeCommercial
Product LineOPP20
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 122°F (0° to 50°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Control Input
- 2mA, 24VDC
- Input Power
- 120-230-277VAC, 50/60 Hz
- Neutral Wire Connection
- Required
- Voltage
- 120/230/277 VAC
Frequency50/60Hz
Load Rating20A 2400W @ 120V – Resistive, 20A 2400W @ 120V – General Purpose, 20A 2400W @ 120V – Incandescent, 20A 2400W @ 120V – Fluorescent, 16A 1920VA @ 120V – Electronic Ballasts, 16A 1920W @ 120V – LED, 20A 5540W @ 277V – Resistive, 20A 5540W @ 277V – General Purpose, 20A 5540VA @ 277V – Fluorescent, 16A 4430VA @ 277V – Electronic Ballasts, 16A 4430W @ 277V – LED, 1/2 HP @ 120V – Motor Load, 2 HP @ 240/277V – Motor Load, Suitable for general purpose plug load control - 20A 2400W @120V - Can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements
Output Power225mA, 24VDC, 5.4W
Type
- Product Type
- Power Pack
