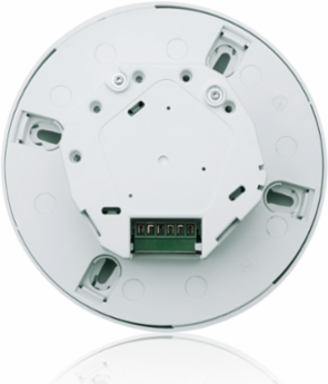

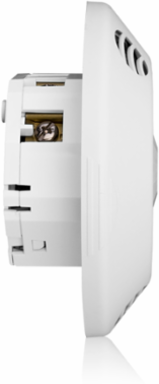

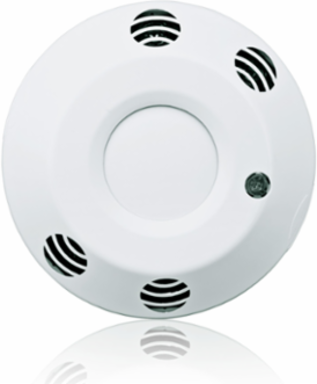

Leviton O2C10-UDW Ultrasonic Ceiling Mount Occupancy Sensor, Dual Relay, 1000SF, 120-277V
Leviton O2C10-UDW Ultrasonic Ceiling Mount Occupancy Sensor, Dual Relay, 1000SF, 120-277V
- MPN: O2C10-UDW
- UPC: 078477642740
- PPN: LEV-O2C10-UDW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$379.87/ EA
Description
Discontinued Product. Occupancy Sensor with Photocell, Provolt™ Lighting Control, 2 Pole, Line Voltage, 8'-12' Ceiling Mounted, Ultrasonic, 1000 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White
Features
- Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor’s field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
- Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Vacancy Sensing Time Outs: (Delayed OFF Timer, Exclusive Walk-through Feature, Time delay and saved settings are protected during power outages and will return to the last known state)
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
- Presentation Mode allows user to turn lights OFF and keep them OFF while the room is occupied
- Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
- Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Field of View: Units from 500 to 2000 square feet available
- Visual LED indicators for all states: (Green - Blinks during U/S detection and is solid during auto-calibration, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed and during photocell override
- The Leviton Provolt ™ Dual Relay Occupancy Sensors combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- CA Title 20/24 Compliant, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL Listed, CE Compliant, NOM Certified, RoHS Compliant, NY LLC48 Compliant
Performance Specifications
- Coverage (Sq.Ft.)
- 1000
Mechanical Specifications
- Mounting Type
- Ceiling Mount
- Size
- Width 4.80" (121.92mm), Depth 2.27" (57.79mm)
Relay TypeDual Relay
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Daylight Harvesting|Code Compliance|Auto ON/Auto OFF|Manual ON/Auto OFF|Fan Control|Auto ON/Manual ON|Stairwell Control|Step Dimming
- Feature
- Ultrasonic Line Voltage Dual Relay
- Mounting
- Ceiling Mount
- Sensor Technology
- Ultrasonic (US)
- Time Delay
- 30s-30m
ColorWhite
GradeCommercial
Product LineProvolt
Sensor TypeOccupancy, Photocell
Title 24 CompliantYes
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Storage Temperature Range
- -15° to 160°F (-26° to 71°C)
Relative Humidity0% to 90% non-condensing
Electrical Specifications
- Current Consumption
- 60-30mA
- Load Rating
- 120V, 50/60Hz: 8A, Electronic Ballast, 800W, Tungsten, 800VA Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, Tungsten, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA Ballast, 1/3 HP Motor
- Voltage
- 120/230/277 VAC
Frequency50/60Hz
Neutral Wire ConnectionRequired
Type
- Product Type
- Occupancy Sensor and Photocell
