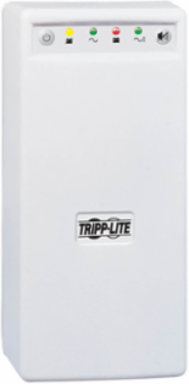

Tripp Lite OMNISMART350HG OmniSmart 120V 330VA 225W UL 60601-1 Medical Grade Line-Interactive UPS, Tower, DB9 Serial
Tripp Lite OMNISMART350HG OmniSmart 120V 330VA 225W UL 60601-1 Medical Grade Line-Interactive UPS, Tower, DB9 Serial
- MPN: OMNISMART350HG
- UPC: 037332098542
- PPN: TRP-OMNISMART350HG
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1104.72/ EA
Description
OmniSmart 120V 330VA 225W UL 60601-1 Medical Grade Line-Interactive UPS, Tower, DB9 Serial
Features
- 330VA line interactive tower UPS
- Maintains sine-wave 120V nominal output over an input range of 83 to 132V
- Professional features include serial port, hospital grade plug & outlets, built-in isolation transformer and UL60601-1 listing

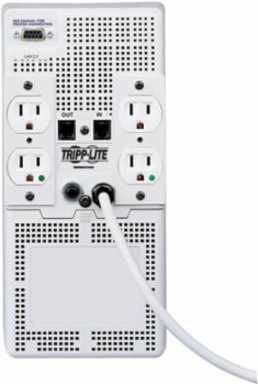

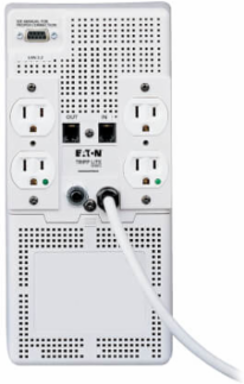

- Input: Hospital-grade NEMA 5-15P (120V 15A) / Output: 4 Hospital-grade NEMA 5-15R (120V)
- 2 line phone suppression for TEL/DSL line protection
- Leakage current less than 100 microamps
- Approved for use within the Patient Care Vicintiy
- Approved to EN60601-1-2:2015 & IEC60601-1-2:2014, 4th Edition
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Response Time
- Instantaneous
- EMI / RFI AC Noise Suppression
- Yes
UPS Dataline Suppression2 line TEL/DSL
Battery
- Full Load Runtime (min.)
- 18 min. (225w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC52 (quantity 2)
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)46 min. (115w)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI); Tested to UL60601-1 (medical grade)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 274
- Shipping Dimensions (hwd / in.)
- 14.00 x 8.00 x 10.10
- UPS Housing Material
- PVC
- UPS Power Module Weight (kg)
- 11.34
Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)
Primary UPS Depth (mm)183
Primary UPS Width (mm)132
Shipping Weight (lbs.)27.80
UPS Power Module Dimensions (hwd, in.)10.8 x 5.2 x 7.2
UPS Power Module Weight (lbs.)25
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage CorrectionInput voltages between 89 and 107 are boosted by 14%
Input
- Rated input current (Maximum Load)
- 2.3A
- UPS Input Connection Type
- 5-15P-HG
- UPS Input Cord Length (ft.)
- 6
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers3.5A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 330
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 120V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)225
Output Voltage Regulation (Line Mode)-18%, +8%
Output Receptacle DetailsHospital grade output receptacles
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(4) 5-15R
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
- Communications Interface
- DB9 Serial
Communications CableDB9 serial cable included
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 215.8
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)48.8
AC Mode Efficiency Rating (100% Load)94%
Overview
- UPC Code
- 037332098542
UPS TypeLine-Interactive
Isolation
- Output Isolation Transformer
- Hospital grade load isolation transformer
Special Features
- Grounding Lug
- Grounding lug
- High Availability UPS Features
- Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)89
