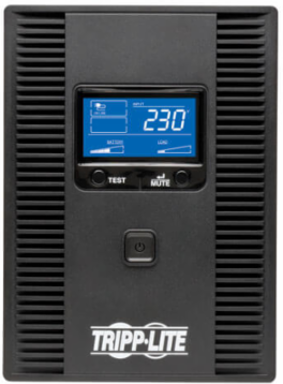

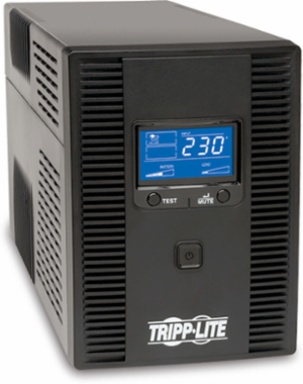

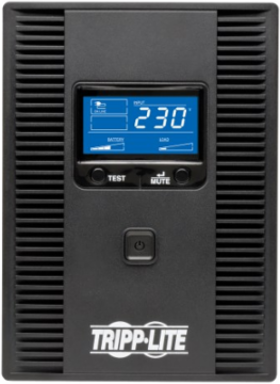

Tripp Lite SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS, Tower, LCD, USB, 8 Outlets
Tripp Lite SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS, Tower, LCD, USB, 8 Outlets
- MPN: SMX1500LCDT
- UPC: 037332177445
- PPN: TRP-SMX1500LCDT
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$714.46/ EA
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, surges and line noise. Ideal for home/office workstations, media centers and home entertainment systems.
Features
- Corrects under- and overvoltages from 170V to 280V
- 8 C13 outlets—2 surge-only
- Interactive LCD monitoring screen
- Monitoring of power conditions via PowerAlert software
- 10 min. runtime at half load
- 2-year limited warranty
- Protects Mission-Critical Equipment
- Reliable Battery Backup
- Automatic Voltage Regulation (AVR)
- EMI/RFI Line Noise Filtering
- Interactive LCD Screen
- Communications Port
- RJ45 Telephone/Ethernet Protection Jacks
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 455
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Half Load Runtime (min.)
- 10 minutes (450 watts)
- Battery Recharge Rate (Included Batteries)
- Less than 8 hours from 10% to 90%
- Expandable Runtime
- No
DC System Voltage (VDC)24
Internal UPS Replacement Battery CartridgeRBC51 (requires 2)
Certifications
- UPS Certifications
- CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia)
UPS Certification DetailsEN62040-1, EN62040-2 Class A
Physical
- Cooling Method
- Fan
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 203
- Shipping Dimensions (hwd / in.)
- 11.30 x 9.10 x 19.30
- UPS Power Module Dimensions (hwd, in.)
- 8 x 5.75 x 15.5
- UPS Power Module Weight (lbs.)
- 24.7
Installation Form Factors Supported with Included AccessoriesTower
Primary UPS Depth (mm)394
Primary UPS Width (mm)146
Shipping Weight (lbs.)27.20
UPS Power Module Weight (kg)11.20
User Interface, Alerts & Controls
- Front Panel LCD Display

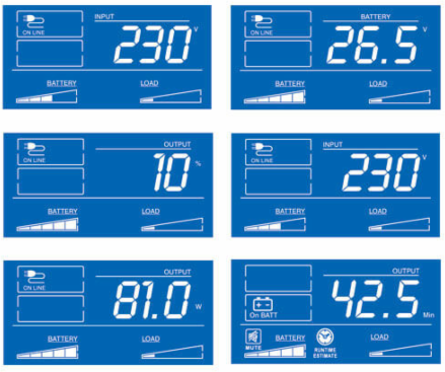

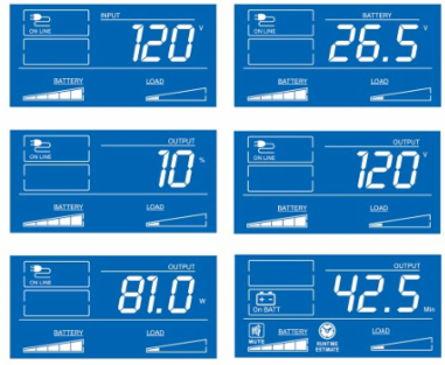

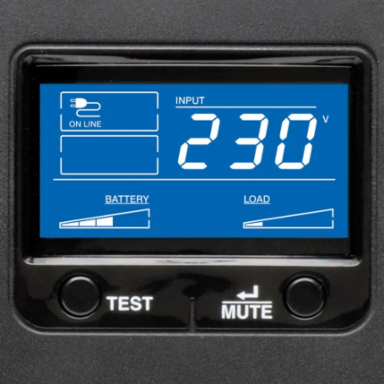

- LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch
SwitchesPower switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
Audible AlarmAudible alarm indicates power-failure and low-battery conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V
- Undervoltage Correction
- Input voltages between 170 and 207 are boosted by 18%
Overvoltage CorrectionInput voltages between 247 and 280 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 9A
- UPS Input Connection Type

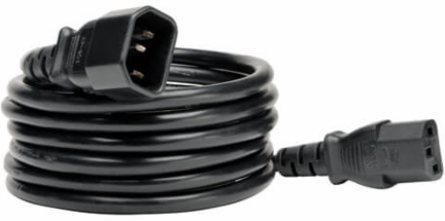

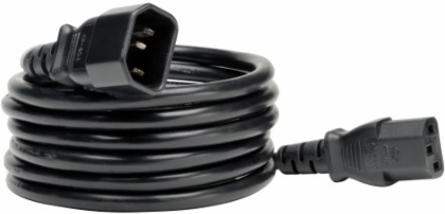

- C14 inlet
- UPS Input Cord Length (ft.)
- 6
Nominal Input Voltage(s) Supported230V AC
Input Circuit Breakers10A fuse
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 900
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUBHV10 (2U / 8 C13 outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) C13
Output kVA Capacity (kVA)1.5
Nominal Voltage Details230V nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection

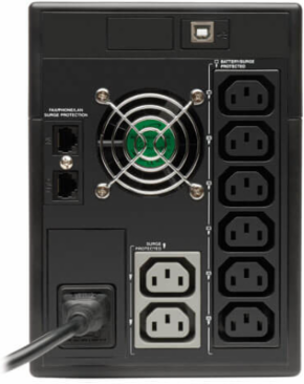

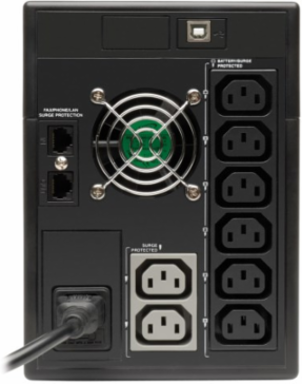

UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 2 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksNo
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable

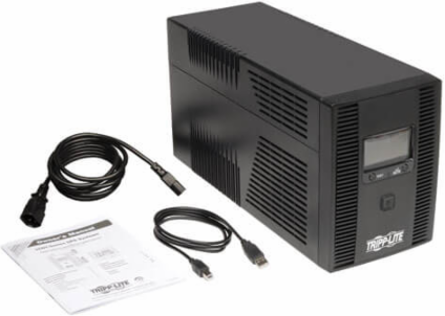

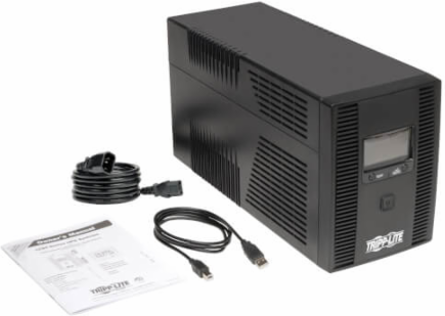

- USB cabling included
- Communications Interface
- USB (HID enabled)
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 918
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)79
AC Mode Efficiency Rating (100% Load)95%
Overview
- UPC Code
- 037332177445
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 6 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 280V (factory setting), 275V (medium setting), 270V (narrow setting)
Low Voltage Transfer to Battery Power (Setpoint)170V (factory setting), 175V (medium setting), 180V (narrow setting)
