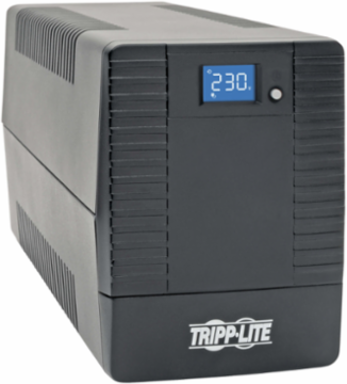

Tripp Lite OMNIVSX1500 1.5kVA 900W Line-Interactive UPS with 8 C13 Outlets - AVR, 230V, C14 Inlet, LCD, USB, Tower
Tripp Lite OMNIVSX1500 1.5kVA 900W Line-Interactive UPS with 8 C13 Outlets - AVR, 230V, C14 Inlet, LCD, USB, Tower
- MPN: OMNIVSX1500
- UPC: 037332221773
- PPN: TRP-OMNIVSX1500
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$465.02/ EA
Description
1.5kVA 900W Line-Interactive UPS with 8 C13 Outlets - AVR, 230V, C14 Inlet, LCD, USB, Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- AVR battery backup allows time to save files and safely shut down during blackouts
- 8 C13 outlets provide power to PC, home theater or digital signage equipment
- Easy-to-read LCD touchscreen provides valuable voltage, load and battery data
- High >95% efficiency with low BTU ratings saves power and lowers your energy costs
- 2-year limited warranty
- 1500VA/900W/230V Battery Backup for PCs, Home Theater or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- Connects Your Equipment to 8 Protected C13 Outlets
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- 312 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power Status
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
- Tower Form Factor for Easy Placement in Your Workspace or Media Center
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 312
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Half Load Runtime (min.)
- 6.5 minutes (450 watts)
- Battery Recharge Rate (Included Batteries)
- Less than 8 hours from 10% to 90%
- Battery Replacement Description
- See manual for battery replacement information
DC System Voltage (VDC)24
Internal UPS Replacement Battery CartridgeRBC51 (qty 2)
Expandable RuntimeNo
Certifications
- UPS Certifications
- CE; Tested to EAC (Belarus, Kazakhstan, Russia)
UPS Certification DetailsIEC 62040-1:2008+A1:2013; EN62040-2:2006, IEC62040-2:2016, Category C2
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary UPS Depth (mm)
- 320
- Primary UPS Width (mm)
- 130
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 9.98
Primary Form FactorTower
Primary UPS Height (mm)183
Shipping Dimensions (hwd / in.)10.80 x 7.60 x 15.30
UPS Power Module Dimensions (hwd, in.)7.2 x 5.1 x 12.6
UPS Power Module Weight (lbs.)22
User Interface, Alerts & Controls

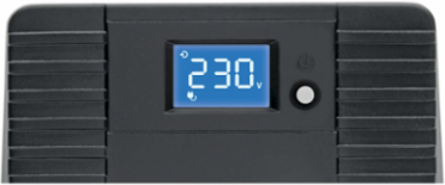

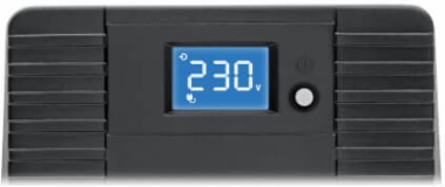

- Front Panel LCD Display
- Touchscreen LCD indicates input voltage, output voltage, output load percentage and battery charge percentage; Supports additional fault reporting (see manual); Touchscreen LCD remains lighted for 20 seconds in line power mode after any user interaction and remains lighted full time in battery mode
- Alarm Cancel Operation
- Alarm remains silent in battery power mode until low-battery condition occurs
SwitchesPower switch offers whole UPS off/on power control
Audible AlarmAudible alarm indicates low-battery condition during battery mode operation
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with a correction range from 170V to 280V
- Undervoltage Correction
- Input voltages between 170 and 207 are boosted by 18%
Overvoltage CorrectionInput voltages between 247 and 280 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 6.5
- UPS Input Connection Type
- C14 inlet
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported230V AC
Input Circuit Breakers10A fuse
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 900
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- -13%, +7%
- Hot-Swap PDU options
- PDUBHV10 (2U / 8 C13 outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave

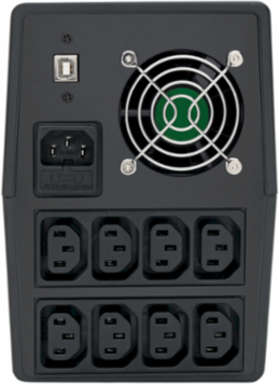

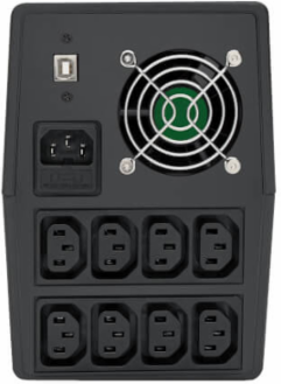

- Output Receptacles
- (8) C13
Output kVA Capacity (kVA)1.5
Nominal Voltage Details230V nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection
Output Voltage Regulation (Battery Mode)±10%
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksNo
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB cabling included
- Communications Interface
- USB (HID enabled)
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- Up to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >95%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)85
Audible NoiseLess than 40dB front side 1m
Overview
- UPC Code
- 037332221773
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 6 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 280V
Low Voltage Transfer to Battery Power (Setpoint)170V
