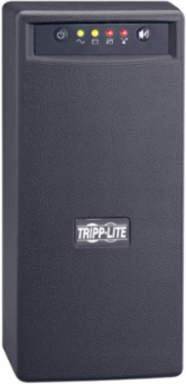

Tripp Lite OMNIVSINT800 OmniVS 230V 800VA 475W Line-Interactive UPS, USB port, C13 Outlets
Tripp Lite OMNIVSINT800 OmniVS 230V 800VA 475W Line-Interactive UPS, USB port, C13 Outlets
- MPN: OMNIVSINT800
- UPC: 037332120960
- PPN: TRP-OMNIVSINT800
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$526.92/ EA
Description
OmniVS 230V 800VA 475W Line-Interactive UPS, USB port, C13 Outlets
Features
- 800VA tower 230V line interactive UPS
- Corrects brownouts as low as 159V without using battery power
- USB port, TEL/DSL protection

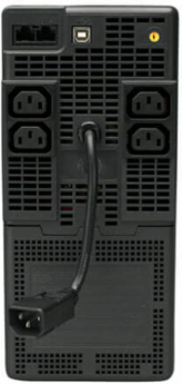

- C14 input and 4 C13 outlets
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 340
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 4.3 min. (475w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)10.8 min. (240w)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 274
- Shipping Dimensions (hwd / in.)
- 9.70 x 7.50 x 13.70
- UPS Housing Material
- PVC
- UPS Power Module Weight (kg)
- 8.85
Installation Form Factors Supported with Optional AccessoriesWallmount ( UPSWM - tower mounting kit)
Primary UPS Depth (mm)191
Primary UPS Width (mm)132
Shipping Weight (lbs.)21.30
UPS Power Module Dimensions (hwd, in.)10.8 x 5.2 x 7.5
UPS Power Module Weight (lbs.)19.5
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159
Undervoltage CorrectionInput voltages between 159 and 199 are boosted by 14%
Input
- Rated input current (Maximum Load)
- 2.4A
- UPS Input Connection Type
- C14 inlet
- UPS Input Cord Length (ft.)
- 0.5
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection DescriptionAttached 15cm line cord with C14 inlet. The C14 accepts a user-supplied AC power cord with country-specific plug.
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 800
- Nominal Voltage Details
- 230V nominal output in battery mode
- Frequency Compatibility Details
- Automatic frequency selection
- Included Output Power Cables
- Includes 2 C13 to C14 output power cables
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 220V; 230V; 240V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)475
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)+/- 5%
Hot-Swap PDU optionsPDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(4) C13
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB interface cable included
Communications InterfaceUSB
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 97%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Battery Mode BTU / Hr. (Full Load)458
Overview
- UPC Code
- 037332120960
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (International)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint)159
