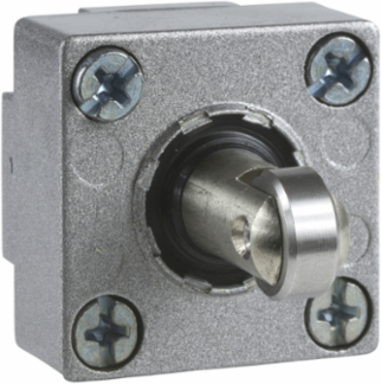

Telemecanique Sensors ZCKE62 Limit switch head, Limit switches XC Standard, ZCKE, steel roller plunger
Telemecanique Sensors ZCKE62 Limit switch head, Limit switches XC Standard, ZCKE, steel roller plunger
- MPN: ZCKE62
- PPN: TES-ZCKE62
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$68.85/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation by 30° cam with positive opening operation. The metal spring return roller plunger supports lateral approach in 2 directions. The movement of limit switch operating head is linear. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ limit switches, and various ZC bodies Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Switch Actuation
- by 30° cam
- Head Material
- metal
Positive Openingwith
Specifications
- Type Of Approach
- lateral approach, 2 directions
- Movement Of Operating Head
- linear
- Type Of Operator
- roller plunger spring return metal
- Associated Body
- ZCKJ21H7 || ZCKJD35H29 || ZCKJD31H29 || ZCKJ9H29 || ZCKJ4H7 || ZCKJ9H7 || ZCKJ6H29 || ZCKJ2H29 || ZCKJ8H7 || ZCKJD31H7 || ZCKJ21H29 || ZCKJD37H7 || ZCKJ7H29 || ZCKJ11H29 || ZCKJ11 || ZCKJ21 || ZCKJ4H29 || ZCKJ9 || ZCKJ6 || ZCKJD39 || ZCKJD31 || ZCKJD35H7 || ZCKJ7 || ZCKJD39H7 || ZCKJD39H29 || ZCKJD37 || ZCKJ5H7 || ZCKJ41H29 || ZCKJ8 || ZCKJD35 || ZCKJ11H7 || ZCKJ41 || ZCKJ1H29 || ZCKJ4 || ZCKJ1 || ZCKJ5H29 || ZCKJ1H7 || ZCKJ7H7 || ZCKJ2H7 || ZCKJ41H7 || ZCKJ8H29 || ZCKJ2 || ZCKJD37H29 || ZCKJ5 || ZCKJ6H7
- Device Short Name
- ZCKE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKJ
Head Typeplunger head
