Square D 9421LS13 Circuit Breaker Rotary Handle Accessory, 125A-600A, Long Shaft, NEMA 1/3R/12
- MPN: 9421LS13
- UPC: 785901499336
- PPN: SCH-9421LS13
CAD
$72.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

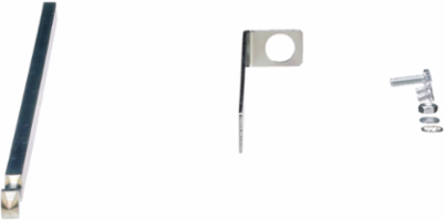

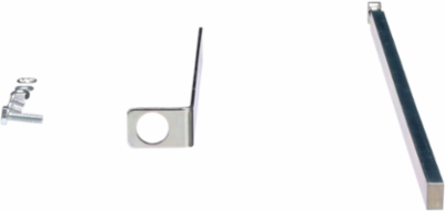

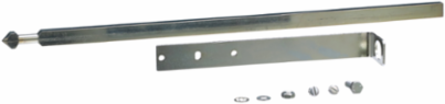

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This long shaft works with the operating mechanism for a PowerPacT B, H, J, D or L circuit breaker. This long shaft will also work with the operating mechanism for the legacy 3 pole GJL circuit breakers. This long shaft is UL Component Recognized and CSA certified
Features
- Engineered specifically for flawless integration within control panel installations, this Schneider Electric long switch shaft is fully compatible with PowerPact B, H, J, and L frame circuit breakers, as well as legacy 3-pole GJL models. Designed to work directly with 9421LG7 or LJ7 operating mechanisms, it ensures you can complete or repair your commercial disconnect setups without worrying about mismatching parts or operational failures.
- Featuring a heavy-duty long shaft design, this variable-depth component allows for flexible mounting when matching the distance between the breaker mechanism and the flange handle assembly on deep or custom-sized enclosures. This eliminates the constraint of fixed-depth components, providing industrial electricians and panel builders the exact physical spacing needed to ensure smooth external rotary operations.
- When paired with appropriate Class 9421 handles, this operating mechanism accessory helps maintain high-level environmental integrity across NEMA 1, NEMA 3R, and NEMA 12 industrial enclosures. This ensures your internal electronic controls remain fully shielded from harsh job site elements like dust, moisture, and oil trickles, optimizing long-term system uptime.
- This product comes outfitted with a dedicated support bracket, ensuring you have the structural stability required to withstand repeated manual rotary actuation over its service life. The included hardware minimizes panel flex during operation, allowing you to establish a secure, professional flange-mounted installation right out of the box.
- Built for rigorous commercial and industrial deployment, this Square D by Schneider Electric switch shaft is both UL Component Recognized and CSA certified to guarantee compliance with workplace safety rules. Its robust design supports standard lockout/tagout (LOTO) protocols when coupled with compatible handles, allowing operators to safely padlock the mechanism to prevent accidental re-energization during maintenance.
