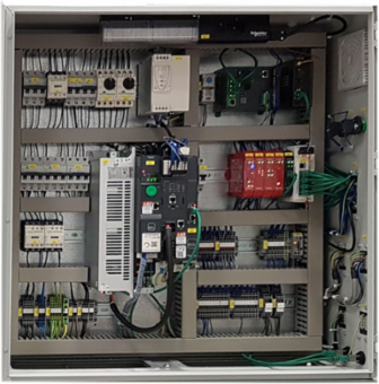

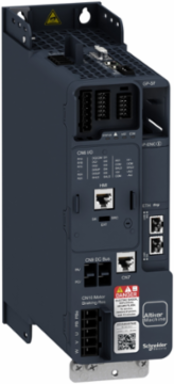

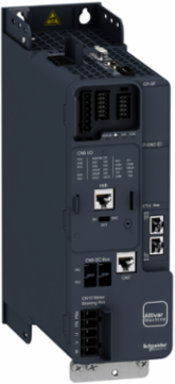

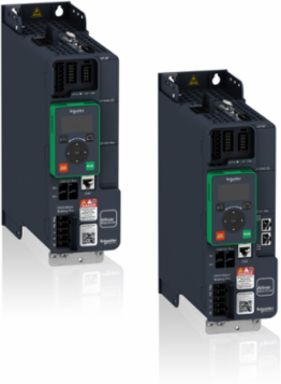

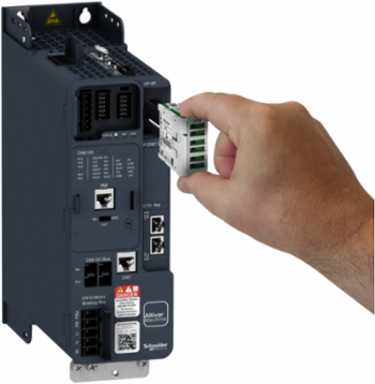

Schneider Electric ATV340U07N4E Variable Speed Drive 0.75kW 400V 3-Phases Ethernet

  • MPN: ATV340U07N4E
  • PPN: SCH-ATV340U07N4E
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1177.06

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Variable Speed Drive 0.75kW 400V 3-Phases Ethernet

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Sweden, United States

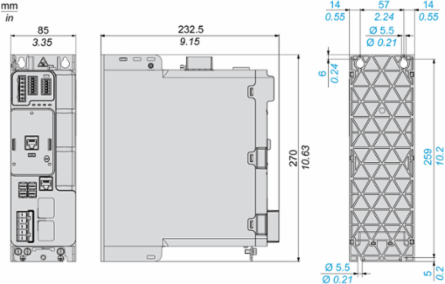

    Depth232.5 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, Modbus serial, EtherNet/IP

    Complementary Attributes

    Maximum Transient Current
    3.1 A 60 s normal duty)3.3 A 60 s heavy duty)3.8 A 2 s normal duty), 4 A 2 s heavy duty)
    Brake Chopper Integrated
    true
    Maximum Horse Power Rating
    1.5 hp normal duty1 hp heavy duty
    Maximum Output Frequency
    0.599 kHz
    Maximum Switching Current
    relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2C resistive, cos phi = 1 5 A 30 V DCrelay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1C resistive, cos phi = 1 3 A 30 V DCrelay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2C resistive, cos phi = 1 5 A 250 V AC
    Minimum Switching Currentrelay output R1B 5 mA 24 V DC, relay output R2C 5 mA 24 V DC
    Maximum Associated Fuse Rating8.0 A
    Maximum Input Current Per Phase3.4 A
    Maximum Output Voltage480 V

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Apparent Power
    2.2 kVA 480 V normal duty), 2.2 kVA 480 V heavy duty)
    Connector Type
    1 x RJ45, Modbus serial on front face, 1 x RJ45, Modbus serial HMI on front face2 x RJ45, Ethernet IP/Modbus TCP on front face, 3 RJ45
    Electrical Connection
    screw terminal 1.5...4 mm² line sidescrew terminal 4...6 mm² DC bus, screw terminal 1.5...4 mm² motorscrew terminal 0.2...2.5 mm² controlline side screw terminal 1.5...4 mm² 14 AWG...12 AWG, DC bus screw terminal 4...6 mm² 12 AWG...10 AWG, motor screw terminal 1.5...4 mm² 14 AWG...12 AWG, control screw terminal 0.2...2.5 mm² 24 AWG...12 AWG
    Encoder Protocol
    1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Line Current
    2.6 A 480 V heavy duty), 2.6 A 380 V normal duty)2.1 A 480 V normal duty)3.4 A 380 V heavy duty)2.6 A 480 V without line choke heavy duty), 2.6 A 380 V with external line choke normal duty), 2.1 A 480 V with external line choke normal duty), 1.9 A 380 V with external line choke heavy duty), 1.6 A 480 V with external line choke heavy duty), 3.4 A 380 V without line choke heavy duty)
    Method Of Access
    slave Modbus RTU, slave Modbus TCP
    Power Dissipation In W
    forced convection 33 W 380 V 4 kHz normal duty)natural convection 28 W 380 V 4 kHz heavy duty), forced convection 28 W 380 V 4 kHz heavy duty)natural convection 33 W 380 V 4 kHz normal duty)
    Protection Type
    safe torque off drivemotor phase loss drive, thermal protection motor, safe torque off motor, motor phase loss motor, thermal protection drive, overheating drive, overcurrent drive, output overcurrent between motor phase and earth drive, output overcurrent between motor phases drive, short-circuit between motor phase and earth drive, short-circuit between motor phases drive, DC Bus overvoltage drive, line supply overvoltage drive, line supply undervoltage drive, input supply loss drive, exceeding limit speed drive, break on the control circuit drive
    Synchronous Motor Control Profile
    reluctance motor, permanent magnet motor
    Motor Power Hp 12
    1.5 hp normal duty, 1 hp heavy duty
    Certificate Agency
    UL, CSA, TÃœV, EAC, CTick
    Input/Output Type
    programmable as logic input/output DQ1 0-1 kHz, <= 30 V DC, 100 mA, programmable as logic input/output DQ2 0-1 kHz, <= 30 V DC, 100 mA
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.4842439177991481, 0.5 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.7 kg CO2 eq., 0.6628270073331868
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    892 kg CO2 eq., 892.0546851318285
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2311030EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    YES_SSI2Yes
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Application In Domestic And Commercial Area Permitted
    false
    Base Load Current At High Overload
    2.2 A
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Design Of Frequency Changer
    U converter
    Exchange Mode
    half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    8.0 A
    Motor Power Kw
    1.1 kW normal duty0.75 kW heavy duty
    Mounting Mode
    cabinet mount
    Noise Level
    52.7 dB
    Number Of Addresses
    1-247
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Static Current Independent
    16.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    5 kA
    Refresh Time
    relay output R1, R2)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Shock Resistance
    15 gn 11 ms, class 3M3 IEC 60721-3-3
    Specific Application
    machine
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    false
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    false
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    964 kg CO2 eq.
    Type Of Cooling
    forced convection
    Vibration Resistance
    1.5 mm peak to peak 2-19 Hz)IEC 60721-3-3 class 3M31 gn 9-200 Hz)IEC 60721-3-3 class 3M3
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium high phase, 40% uptime in medium low phase and 10% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: general machine.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    2176.45
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal
    270.0 mm
    [Us] Rated Supply Voltage
    380...480 V380...480 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation)
    70 m/s² at 22 ms
    Maximum Acceleration Under Shock Load (During Transport)
    70 m/s² at 22 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    5 m/s² at 9...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...9 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...9 Hz
    Permitted Relative Humidity (During Storage)
    class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Work
    false
    Supporting Protocol For Ethernet/Ip
    true
    Supporting Protocol For Tcp/Ip
    true
    With Safety Function Safe Direction (Sdi)
    false
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safe Stop 1 (Ss1)
    true
    With Safety Function Safely Limited Position (Slp)
    false
    With Sft Fct Safe Stop 2 (Ss2)
    false
    Package Weight(Lbs)
    2.485 kg
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profileconstant torque standard, variable torque standard, optimized torque mode
    Discrete And Process Manufacturingpackaging other applicationhoisting tower crane, hoisting other applicationmaterial handling grouping conveyor, material handling palletizer - high performancematerial working (wood, ceramic, stone, pvc, metal) cutting - high accuracy, material working (wood, ceramic, stone, pvc, metal) polishing, material working (wood, ceramic, stone, pvc, metal) grinding, material working (wood, ceramic, stone, pvc, metal) slitterpackaging filling bottles - synchronized operation, packaging feed conveyor - medium performance, packaging grouping boxing, packaging conveyor, packaging elevator, hoisting standard crane - hoist, material handling automatic storage / retrieval system, packaging shrinking wrapping
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity ErrorAI1, AI2 +/- 0.15 % of maximum value analog input, AQ1 +/- 0.2 % analog output
    Motor Slip Compensationautomatic whatever the load, adjustable, not available in permanent magnet motor law, can be suppressed
    Power Range0.55-1 kW 380-440 V 3 phase, 0.55-1 kW 480-500 V 3 phase
    Sampling Duration2 ms +/- 0.5 ms DI1...DI5) - discrete input5 ms +/- 1 ms PTI) - pulse input, 1 ms +/- 1 ms AI1, AI2) - analog input5 ms +/- 1 ms AQ1) - analog output2 ms +/- 0.5 ms DQ1, DQ2) - discrete input/output
    Transmission Rate4.8 kbit/s, 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
    Motor Power Kw 101.1 kW normal duty, 0.75 kW heavy duty
    [Ue] Rated Operational Voltage380...480 V 1.1 kW normal duty380...480 V 0.75 kW heavy duty, 380...480 V 1.5 hp normal duty, 380...480 V 1 hp heavy duty
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]4.318326563950249, 4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]67 kg CO2 eq., 66.90724517547339
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possibletrue
    Assembly Stylewith heat sink
    Base Load Current At Low Overload2.8 A
    Capacity Of Dc Link195.0 µF
    Data Format8 bits, configurable odd, even or no parity
    Emc Filterclass C3 EMC filter integrated
    Housing Materialplastic
    MarkingCE
    Maximum Input Current Per Phase3.4 A
    Motor Starter Typevariable speed drive
    Network Frequency50-60 Hz
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Industrial Ethernet2
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage Categoryclass III
    Power Loss Per Device Current Dependent49.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationmachine
    Range Of ProductAltivar Machine ATV340
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Safety FunctionSTO (safe torque off) SIL 3
    Software Versionv6.1
    Supply Frequency50...60 Hz +/- 5 %
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibusfalse
    Supporting Protocol For Profinet Iofalse
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Switching Frequency2...16 kHz adjustable14...16 kHz with derating factor
    Transmission FrameRTU
    Type Of Polarizationno impedance
    Volume Of Cooling Air18.0 m3/h
    With Safety Function Safe Programmable Logicfalse
    Pep CodeENVPEP2311030EN
    Pep Verification Date2024-10-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %47
    Width Nominal85.0 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)70 m/s² at 22 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)5 m/s² at 9...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)5 m/s² at 9...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...9 Hz
    Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highwayfalse
    Supporting Protocol For Interbus-safetyfalse
    With Safety Function Safe Brake Management (Sbc/Sbt)true
    With Safety Function Safe Operating Stop (Sos)false
    With Safety Function Safe Speed Monitor (Ssm)false
    With Safety Function Safe Torque Off (Sto)true
    With Safety Function Safely Limited Speed (Sls)true
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8504404000

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position)-15-60 °C, -15-60 °C, -15-50 °C without derating vertical position), -15-50 °C without derating vertical position), -15-50 °C without derating vertical position)50-60 °C with derating factor vertical position)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    964.4273277963845
    Environmental Disclosure
    ENVPEP2311030EN
    Ip Degree Of Protection
    IP20
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-10-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m<= 9842.52 ft (3000 m) with current derating above 1000m, <= 9842.52 ft (3000 m) with current derating above 1000m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2311030EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of Protectionnot applicable
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2311030EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Machine ATV340
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
    Relay Output Type
    relay outputs R1Arelay outputs R1C 100000 cycles, relay outputs R2A, relay outputs R2C 100000 cycles
    Continuous Output Current
    2.2 A 4 kHz heavy duty2.8 A 4 kHz normal duty
    Discrete Output Type
    programmable output DQ1, DQ2 30 V DC 100 mA
    Maximum Output Voltage
    480 V
    Nominal Output Power
    0.75 kW
    Speed Drive Output Frequency
    0.1-599 Hz
    Output Voltage<= power supply voltage, <= power supply voltage
    Analogue Output Number1
    Discrete Output Number2.0
    Maximum Output Frequency0.599 kHz
    Nominal Output Current2.2 A
    Relay Output Number2

    Surge Protection And Filtering Attributes

    Emc Filter
    class C3 EMC filter integrated

    Input Attributes

    Analogue Input Type
    AI1 software-configurable current 0...20 mA 250 Ohm 12 bits, AI1 software-configurable temperature probe or water level sensorAI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bitsAI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
    Discrete Input Type
    PTI as pulse input 0-30 kHz, 24 V DC 30 V), DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm, programmable
    Analogue Input Number
    2
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI5), < 5 V, > 11 V, negative logic (sink) DI1...DI5), > 16 V, < 10 V, positive logic (source) PTI), < 0.6 V, > 2.5 V, positive logic (source) STOA, STOB), < 5 V, > 11 V, 16 preset speeds
    Input CompatibilityDI1...DI5 discrete input level 1 PLC IEC 61131-2, PTI pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Number5
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$1177.06/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
