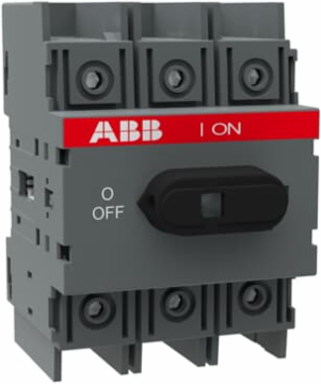

ABB OT30F3 3-Phase 30A UL98 Non-Fused Switch - ARRA & BAA Compliant
- MPN: OT30F3
- UPC: 804325415484
- PPN: ABB-OT30F3
CAD
$203.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3-Phase 30A UL98 Non-Fused Switch - ARRA & BAA Compliant
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Rated Operational Current AC-23A
- 40 A
- Rated Insulation Voltage
- 750 V
- Rated Short-Circuit Making Capacity
- 3.6 kA (690 V)
- Horsepower Rating UL/CSA
- 2 Hp (110-120 V AC Single Phase), 5 Hp (240 V AC Single Phase), 10 Hp (220-240 V AC Three Phase), 20 Hp (440-480 V AC Three Phase), 30 Hp (550-600 V AC Three Phase)
- Cable Cross-Section
- Cu 2.5 ... 25 mm2
- Wire Stripping Length
- 17-18 mm
- Dimensions
- 70 mm Width, 100 mm Height, 74 mm Depth
- Mounting Type
- Base mounting, DIN-rail mountable
- Compliance
- UL 98, ARRA Compliant, BAA Compliant
- Material
- Grey
- Country of Origin
- Finland
Number of Poles3P
Rated Operational Power AC-23A18.5 kW (380-415 V), 22 kW (500 V), 37 kW (690 V)
Rated Impulse Withstand Voltage8 kV
Rated Short-time Withstand Current2.5 kA for 1 s
Power Loss0.7 W per pole
Connecting Capacity Main CircuitFlexible or stranded Cu 2.5...25 mm2
Tightening Torque6.2 N m (IEC), 55 in lb (UL/CSA)
Weight0.36 kg
Degree of ProtectionFront IP20
StandardsIEC 60947-3, UL 98, CSA C22.2 No.4
Handle TypeKnob
