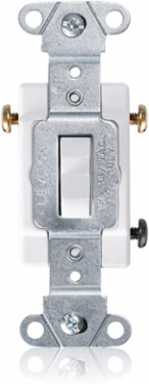

Leviton 18203-W 3-Way Toggle Switch, Heavy-Duty Grade, 15 Amp, 347 Volt AC, White
Leviton 18203-W 3-Way Toggle Switch, Heavy-Duty Grade, 15 Amp, 347 Volt AC, White
- MPN: 18203-W
- PPN: LEV-18203-W
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$17.34/ EA
Specifications
Standards and Certifications
- Warranty
- 10-Year Limited
- CSA C22.2 No. 111
- File #152105
- UL Fed Spec WS896E
- File #E7458
ANSIC-73
UL StandardUL20
Material Specifications
- Function
- 3-Way
- Feature 4
- Canadian
- Cover Material
- Thermoplastic
- Grade
- Heavy-Duty Industrial Specification Grade
- Base Material
- Thermoplastic
- Body Material
- Thermoplastic
TogglePolycarbonate
ColorWhite
Strap MaterialSteel
Terminal ScrewsBrass 8-32
Device TypeToggle Switch
Contact MaterialSilver Alloy
Mechanical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Voltage
- 347 VAC
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Product IDRatings are permanently marked on device
Temperature RiseMaximum 30 degrees C rise
Torque Range12-14 inch pounds
TerminationBack or Side Wire
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Product Features
- Function
- 3-Way
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Feature 4
- Canadian
- Country Of Origin
- Please Contact Customer Service.
- Device Type
- Toggle Switch
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Product IDRatings are permanently marked on device
Torque Range12-14 inch pounds
ColorWhite
GradeHeavy-Duty Industrial Specification Grade
TerminationBack or Side Wire
Electrical Specifications
- Amperage
- 15 A
- Terminal Screws
- Brass 8-32
- Cover Material
- Thermoplastic
- Base Material
- Thermoplastic
- Voltage
- 347 VAC
- Endurance
- 50,000 cycles minimum
Dielectric VoltageWithstands 1500V for 1 minute
Temperature RiseMaximum 30 degrees C rise
Strap MaterialSteel
TogglePolycarbonate
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Contact MaterialSilver Alloy
