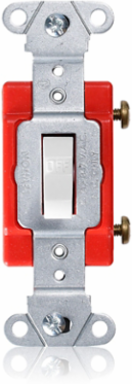

Leviton 18221-W Single-Pole Toggle Switch Heavy-Duty Industrial 20 Amp 347 Volt AC
- MPN: 18221-W
- PPN: LEV-18221-W
CAD
$19.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Single-Pole Toggle Switch Heavy-Duty Industrial 20 Amp 347 Volt AC
Documentation & Downloads
Specifications
Standards and Certifications
| ANSI | C-73 |
|---|---|
| UL Standard | UL20 |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| UL Fed Spec WS896E | File #E7458 |
Material Specifications
| Amperage | 20 A |
|---|---|
| Terminal Screws | Brass 8-32 |
| Cover Material | Thermoplastic |
| Toggle | Polycarbonate |
| Body Material | Thermoplastic |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Contact Material | Silver Alloy |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Temperature Rise | Maximum 30 degrees C rise |
| Strap Material | Steel |
| Base Material | Thermoplastic |
| Voltage | 347 VAC |
| Endurance | 50,000 cycles minimum |
Mechanical Specifications
| Terminal ID | Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd |
|---|---|
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Termination | Back or Side Wire |
| Product ID | Ratings are permanently marked on device |
|---|---|
| Torque Range | 12-14 inch pounds |
Product Features
| Function | Single-Pole |
|---|---|
| Color | White |
| Grade | Heavy-Duty Industrial Specification Grade |
| Feature 4 | Canadian |
|---|---|
| Country Of Origin | Please Contact Customer Service. |
| Device Type | Toggle Switch |
Warranty
| Warranty | 10-Year Limited |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Terminal Screws | Brass 8-32 |
| Cover Material | Thermoplastic |
| Base Material | Thermoplastic |
| Voltage | 347 VAC |
| Endurance | 50,000 cycles minimum |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Temperature Rise | Maximum 30 degrees C rise |
| Strap Material | Steel |
| Toggle | Polycarbonate |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Contact Material | Silver Alloy |
