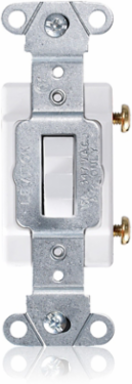

Leviton 18201-W Heavy-Duty Toggle Switch, 15 Amp, 347 Volt AC, Thermoplastic, UL/CSA Certified
- MPN: 18201-W
- PPN: LEV-18201-W
CAD
$11.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy-Duty Toggle Switch, 15 Amp, 347 Volt AC, Thermoplastic, UL/CSA Certified
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Function
- Single-Pole
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Grade
- Heavy-Duty Industrial Specification Grade
- Torque Range
- 12-14 inch pounds
- Size & Fit/Dimensions
- N/A
- Material
- Thermoplastic, Silver Alloy, Steel, Polycarbonate, Brass
- Terminal Screws
- Brass 8-32
- Termination
- Back or Side Wire
- Body Material
- Thermoplastic
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
- Standards and Certifications
- UL Listed, CSA Certified
- ANSI
- C-73
- Temperature Rise
- Maximum 30 degrees C rise
Voltage347 VAC
Endurance50,000 cycles minimum
Overload UL20 Test100 cycles of OL at 4.8 times rated current
GradeHeavy-Duty Industrial Specification Grade
Operating Temperature-40C to 65C
Device TypeToggle Switch
Terminal IDBrass-Hot (If Applicable), Black-Hot, White-Neutral, Green-Gnd
Terminal Accom.14-#10 AWG back wired; #14-#12 AWG side wired
Cover MaterialThermoplastic
Base MaterialThermoplastic
Contact MaterialSilver Alloy
FlammabilityRated V-2 per UL 94
UL Fed Spec WS896EFile #E7458
CSA C22.2 No. 111File #152105
ColorWhite
