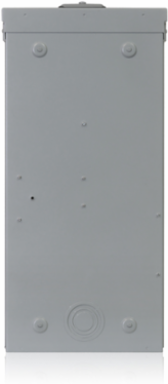

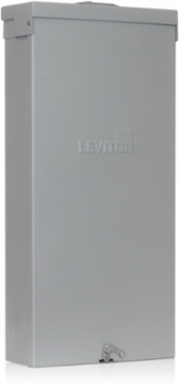

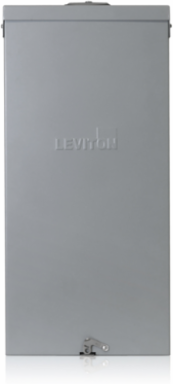

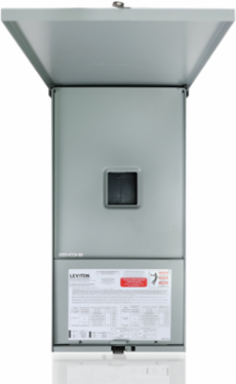

Leviton LR022-LDD Outdoor Circuit Breaker Enclosure
- MPN: LR022-LDD
- UPC: 078477016428
- PPN: LEV-LR022-LDD
CAD
$230.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
*Main breaker sold separately, enclosure rated up to 225A Outdoor Circuit Breaker Enclosure with provision for field installation of main circuit breaker. NEMA 3R Rated. Includes rainproof enclosure, feed-thru lugs, closing plate, and NEC 2023 compliant Emergency Disconnect and Service Disconnect labels
Features
- NEC 2023, Article 230.85 compliant for use as EMERGENCY DISCONNECT and SERVICE DISCONNECT
- NEC 2023, Article 225.41 compliant for use as EMERGENCY DISCONNECT
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard with tin plated copper bussing
- CONVENIENT – Includes provision for field-installation of Main Circuit Breaker (225A MAX) per jobsite requirements
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|
| RoHS Compliant | False |
|---|
Mechanical Specifications
| Busbar Material | Copper, Bright Tin-Plated |
|---|---|
| Ground Connection | #4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | #3 AWG - 300 MCM Cu/Al |
| Enclosure Material | Galvanized Steel, Gray Baked Enamel |
|---|---|
| Material | Galvanized Steel |
Product Features
| Color | Gray |
|---|
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| NEMA Enclosure Type | NEMA 3R Outdoor |
|---|
| Operating Temperature | -40°C to 85°C |
|---|
Electrical Specifications
| Amperage | 200 A |
|---|---|
| Type | Outdoor |
| Voltage | 120/240 VAC |
| Short Circuit Current Rating | 22 KA |
|---|---|
| Type of Load Center | Outdoor Disconnect Enclosure |
Standards & Certifications
| CSA C22.2 No. 5 | Yes |
|---|---|
| CSA C22.2 No. 94.2 | Yes |
| UL 50 | Yes |
| UL 67 | No |
| CSA C22.2 No. 94.1 | Yes |
|---|---|
| UL 489 | Yes |
| UL 50E | Yes |
| UL 869A | No |
