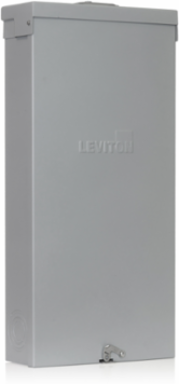

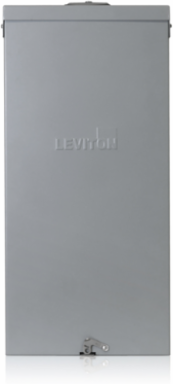

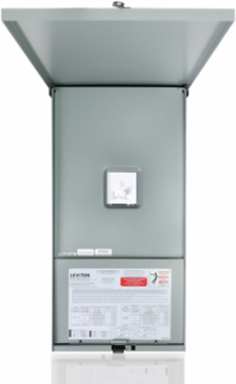

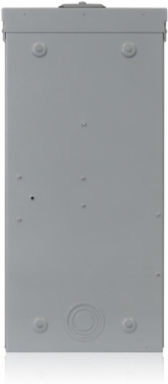

Leviton LR020-BDD Outdoor Circuit Breaker Enclosure with 200A Main Circuit Breaker
- MPN: LR020-BDD
- UPC: 078477016404
- PPN: LEV-LR020-BDD
CAD
$372.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Outdoor Circuit Breaker Enclosure with 200A main circuit breaker factory installed, NEMA 3R rated. Includes rainproof enclosure, feed-thru lugs, closing plate, and NEC 2023 compliant Emergency Disconnect and Service Disconnect labels
Features
- NEC 2023, Article 230.85 compliant for use as EMERGENCY DISCONNECT and SERVICE DISCONNECT
- NEC 2023, Article 225.41 compliant for use as EMERGENCY DISCONNECT
- SUPERIOR CONDUCTIVITY - All Leviton Load Centers come standard with tin plated copper bussing
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Mechanical Specifications
| Busbar Material | Copper, Bright Tin-Plated |
|---|---|
| Ground Connection | #4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | #3 AWG - 300 MCM Cu/Al |
| Enclosure Material | Galvanized Steel, Gray Baked Enamel |
|---|---|
| Material | Galvanized Steel |
Product Features
| Color | Gray |
|---|
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| NEMA Enclosure Type | NEMA 3R Outdoor |
|---|
| Operating Temperature | -40°C to 85°C |
|---|
Electrical Specifications
| Amperage | 200 A |
|---|---|
| Type | Outdoor |
| Voltage | 120/240 VAC |
| Short Circuit Current Rating | 22 KA |
|---|---|
| Type of Load Center | Outdoor Disconnect Enclosure |
Standards & Certifications
| CSA C22.2 No. 5 | Yes |
|---|---|
| CSA C22.2 No. 94.2 | Yes |
| UL 50 | Yes |
| UL 67 | No |
| CSA C22.2 No. 94.1 | Yes |
|---|---|
| UL 489 | Yes |
| UL 50E | Yes |
| UL 869A | No |
