Panduit FSD80-8-D Pan-Term® FSD80-8-D Covered Single Wire Ferrules
Panduit FSD80-8-D Pan-Term® FSD80-8-D Covered Single Wire Ferrules
- MPN: FSD80-8-D
- UPC: 074983762590
- PPN: PAN-FSD80-8-D
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.21/ EA
Description

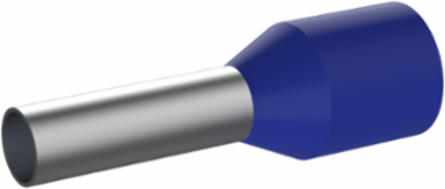

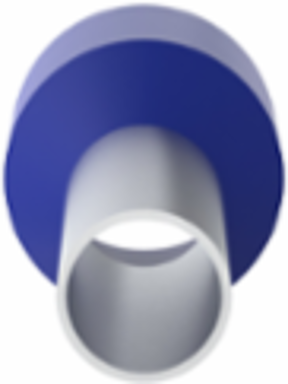

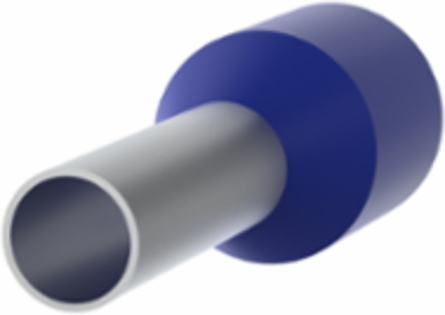

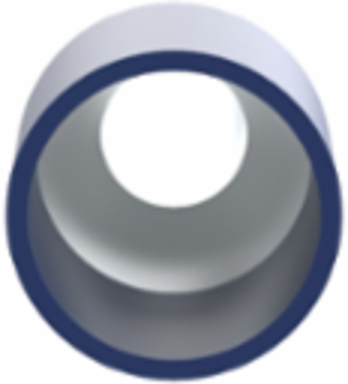

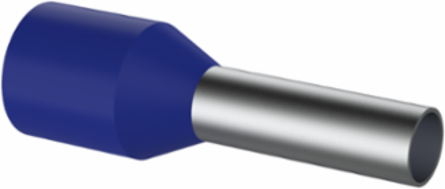

Covered ferrules single wire blue DIN end sleeve, 14 AWG, 8mm pin length.
Specifications
Packaging Details
- UPC
- 07498376259
- Standard Package Volume Ft3
- 0.1164
- Std Package Height In
- .85
- Std Package Length In
- 4.75
- Std Package Width In
- 4.3
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 500
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Piece
- REACH Status
- N
- ARRA Compliant
- Y
- Lead Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 2,160,000
- Pallet Weight
- 864.0000
GTIN Package00074983762590
Standard Package Weight Pounds0.2000
Std Package Height MM21.59
Std Package Length MM120.65
Std Package Width MM109.22
UOM EA PKPK
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983762590
California Pro65 CancerNo
Mercury Content IndicatorN
Restricted Use of Hazardous SubstancesN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
Specifications
- Country of Origin
- Germany
- Product Segment
- IEI
- Maximum Operating Temperature (°F)
- 221
- Packaging Type
- Bag
- Pin Length (In.)
- 0.31
- Color Code
- Blue
- Pin Length (mm)
- 8
- For Use With
- CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
- Minimum Operating Temperature (°F)
- -60
- Base Material
- Copper
- Ferrule Type
- Single Wire Standard
- Sub Brand
- Pan-Term®
- Inside Diameter (mm)
- 2.3
- Maximum Metric Conductor Size (mm²)
- 2.5
- Overall Length (In.)
- 0.59
- Overall Length (mm)
- 15
Any Reason Not to SellN
Minimum Operating Temperature (°C)-54
Wire Strip Length (In.)15/32
Finish/CoatingTin-Plated
Flammability RatingUL94-HB
CSA Temperature Rating (°C)105
Maximum Wire Insulation Diameter (In.)0.17
UL Temperature Rating (°C)105
Maximum Wire Insulation Diameter (mm)4.2
Inside Diameter (In.)0.09
Maximum Operating Temperature (°C)105
Minimum Metric Conductor Size (mm²)2.5
Wire Strip Length (mm)11.9
Product TypeCovered Single Wire Ferrule
Cover MaterialPolypropylene
Copper Conductor Size14 AWG
