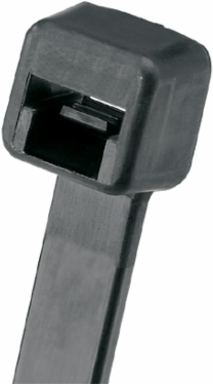

Panduit PLT1M-M0 Cable Tie, Black, UV PA6.6, 3.9"L (99 mm), 18lb, PK1000
Panduit PLT1M-M0 Cable Tie, Black, UV PA6.6, 3.9"L (99 mm), 18lb, PK1000
- MPN: PLT1M-M0
- UPC: 074983549580
- PPN: PAN-PLT1M-M0
- UNSPSC: 39121703
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.05/ EA
Description
The PLT1M-M0 cable tie provides dependable bundling for small indoor/outdoor installations requiring weather and UV resistance. Miniature cross section, 3.9 in (99mm) long with 18 lb (80 N) minimum loop tensile strength and a 0.06–0.87 in (1.5–22.1mm) bundle diameter range. It is black UV- and weather-resistant Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, PTS, PPTS, and STS2 tools. Std. pkg. qty. 1000.
Specifications
Specifications
- Country of Origin
- Costa Rica, Malaysia
- Product Segment
- IEI
- Maximum Operating Temperature (°F)
- 185
- Body Thickness (mm)
- 1.1
- Body Width (In.)
- 0.098
- Minimum Bundle Diameter (mm)
- 1.5
- Body Thickness (In.)
- 0.043
- Minimum Bundle Diameter (In.)
- 0.06
- Minimum Operating Temperature (°F)
- -76
- Maximum Bundle Diameter (mm)
- 22
- Minimum Installation Temperature (°F)
- -4
- Minimum Operating Temperature (°C)
- -60
- Overall Length (mm)
- 99
- Minimum Installation Temperature (°C)
- -20
- Flammability Rating
- UL 94 V-2
Any Reason Not to SellN
Body Width (mm)2.5
Product TypePremium Cable Tie
Resistance PropertiesUV-Resistant
For Use WithGTS-E, GS2B-E, PTS, PPTS, STS2
Maximum Operating Temperature (°C)85
ColorBlack
Minimum Loop Tensile Strength (lb)18
Maximum Bundle Diameter (In.)0.87
Minimum Loop Tensile Strength (N)80
EnvironmentIndoor/Outdoor
MaterialNylon 6.6
Overall Length (In.)3.94
Air Handling SpaceAH-2 Plenum
Packaging Details
- UPC
- 07498354958
- Standard Package Volume Ft3
- 0.0628
- Std Package Height In
- 1.85
- Std Package Length In
- 14.5
- Std Package Width In
- 7.9
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1000
- Standard Carton Volume Ft3
- 3.1414
- Std Carton Height In
- 16.75
- Std Carton Length In
- 22.7
- Std Carton Width In
- 15.4
- Std Ctn Qty
- 50000
- EAN
- 00074983549580
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 10,000.0000
- Pallet Volume
- 37.696389
- RoHS Compliant
- Compliant
GTIN Package00074983549580
Standard Package Weight Pounds0.8635
Std Package Height MM46.99
Std Package Length MM368.3
Std Package Width MM200.66
UOM EA PKPK
GTIN Carton50074983549585
Standard Carton Weight Pounds43.1750
Std Carton Height MM425.45
Std Carton Length MM576.58
Std Carton Width MM391.16
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity600,000
Pallet Weight518.1000
