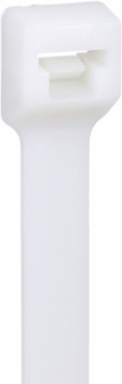

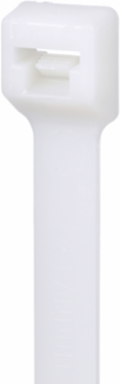

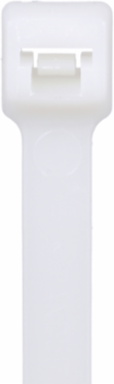

Panduit PLT1M-C Cable Tie, Natural, PA6.6, 3.9"L (99 mm), 18lb, PK100
Panduit PLT1M-C Cable Tie, Natural, PA6.6, 3.9"L (99 mm), 18lb, PK100
- MPN: PLT1M-C
- UPC: 074983540044
- PPN: PAN-PLT1M-C
- UNSPSC: 39121703
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.18/ EA
Description
The PLT1M-C cable tie provides dependable bundling for small indoor installations and general-purpose routing. Miniature cross section, 3.9 in (99mm) long with 18 lb (80 N) minimum loop tensile strength and a 0.06–0.87 in (1.5–22.1mm) bundle diameter range. It is natural Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, PTS, PPTS, and STS2 tools. Std. pkg. qty. 100.
Specifications
Specifications
- Country of Origin
- Costa Rica, Malaysia, United States
- Product Segment
- IEI
- Minimum Operating Temperature (°F)
- -76
- Maximum Operating Temperature (°C)
- 85
- Minimum Operating Temperature (°C)
- -60
- For Use With
- GTS-E, GS2B-E, PTS, PPTS, STS2
- Minimum Loop Tensile Strength (lb)
- 18
- Material
- Nylon 6.6
- Military Cross Reference Number
- MS3367-4-9
- Maximum Bundle Diameter (mm)
- 22
- Body Width (mm)
- 2.5
- Color
- Natural
- Minimum Installation Temperature (°F)
- -4
- Minimum Loop Tensile Strength (N)
- 80
- Flammability Rating
- UL 94 V-2
Any Reason Not to SellN
EnvironmentIndoor
Body Thickness (In.)0.043
Body Width (In.)0.098
Minimum Bundle Diameter (In.)0.06
Maximum Operating Temperature (°F)185
Overall Length (In.)3.94
Maximum Bundle Diameter (In.)0.87
Minimum Bundle Diameter (mm)1.5
Minimum Installation Temperature (°C)-20
Product TypePremium Cable Tie
Body Thickness (mm)1.1
Overall Length (mm)99
Air Handling SpaceAH-2 Plenum
Packaging Details
- UPC
- 07498354004
- Standard Package Volume Ft3
- 0.0237
- Std Package Height In
- .95
- Std Package Length In
- 5.3
- Std Package Width In
- 3.85
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.2370
- Std Carton Height In
- 5.5
- Std Carton Length In
- 10.15
- Std Carton Width In
- 6.5
- Std Ctn Qty
- 1000
- EAN
- 00074983540044
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 1,000.0000
- Pallet Volume
- 53.093899
- RoHS Compliant
- Compliant
GTIN Package00074983540044
Standard Package Weight Pounds0.1500
Std Package Height MM24.13
Std Package Length MM134.62
Std Package Width MM97.79
UOM EA PKPK
GTIN Carton50074983540049
Standard Carton Weight Pounds1.5000
Std Carton Height MM139.7
Std Carton Length MM257.81
Std Carton Width MM165.1
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity224,000
Pallet Weight336.0000
