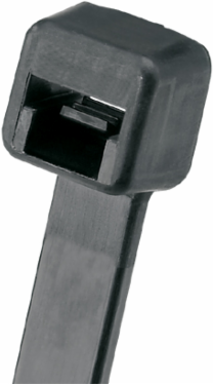

Panduit PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5"L (292 mm), 50lb, PK1000
Panduit PLT3S-M0 Cable Tie, Black, UV PA6.6, 11.5"L (292 mm), 50lb, PK1000
- MPN: PLT3S-M0
- UPC: 074983540624
- PPN: PAN-PLT3S-M0
- UNSPSC: 39121703
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.17/ EA
Description
The PLT3S-M0 cable tie provides reliable bundling for indoor/outdoor installations requiring weather resistance. Standard cross section, 11.5 in (292mm) long with 50 lb (222 N) minimum loop tensile strength and a 0.06–3.0 in (1.5–76.2mm) bundle diameter range. It is black UV- and weather-resistant Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, GTH-E, and GS4H-E tools for fast installation. Std. pkg. qty. 1000.
Specifications
Packaging Details
- UPC
- 07498354062
- Standard Package Volume Ft3
- 0.3303
- Std Package Height In
- 4
- Std Package Length In
- 15.15
- Std Package Width In
- 14.55
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1000
- Standard Carton Volume Ft3
- 3.3034
- Std Carton Height In
- 18
- Std Carton Length In
- 22.15
- Std Carton Width In
- 14.95
- Std Ctn Qty
- 10000
- EAN
- 00074983540624
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 2,000.0000
- Pallet Volume
- 39.640625
- RoHS Compliant
- Compliant
GTIN Package00074983540624
Standard Package Weight Pounds5.1441
Std Package Height MM101.6
Std Package Length MM384.81
Std Package Width MM369.57
UOM EA PKPK
GTIN Carton50074983540629
Standard Carton Weight Pounds51.4410
Std Carton Height MM457.2
Std Carton Length MM562.61
Std Carton Width MM379.73
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity120,000
Pallet Weight617.2920
Specifications
- Country of Origin
- Costa Rica, Malaysia
- Product Segment
- IEI
- Maximum Bundle Diameter (In.)
- 3
- Body Width (mm)
- 4.8
- For Use With
- GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
- Overall Length (mm)
- 292
- Resistance Properties
- UV-Resistant
- Maximum Bundle Diameter (mm)
- 76
- Minimum Bundle Diameter (mm)
- 1.5
- Minimum Bundle Diameter (In.)
- 0.06
- Body Thickness (mm)
- 1.3
- Body Width (In.)
- 0.19
- Maximum Operating Temperature (°C)
- 85
- Minimum Loop Tensile Strength (lb)
- 50
- Air Handling Space
- AH-2 Plenum
Any Reason Not to SellN
ColorBlack
Minimum Operating Temperature (°C)-60
EnvironmentIndoor/Outdoor
Minimum Loop Tensile Strength (N)222
Body Thickness (In.)0.052
Product TypePremium Cable Tie
Minimum Installation Temperature (°C)-20
Minimum Installation Temperature (°F)-4
Overall Length (In.)11.5
Maximum Operating Temperature (°F)185
Minimum Operating Temperature (°F)-76
MaterialNylon 6.6
Flammability RatingUL 94 V-2
