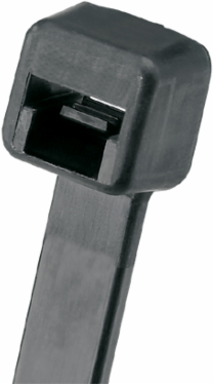

Panduit PLT4S-M0 Cable Tie, Black, UV PA6.6, 14.5"L (368 mm), 50lb, PK1000
Panduit PLT4S-M0 Cable Tie, Black, UV PA6.6, 14.5"L (368 mm), 50lb, PK1000
- MPN: PLT4S-M0
- UPC: 074983540945
- PPN: PAN-PLT4S-M0
- UNSPSC: 39121703
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.19/ EA
Description
The PLT4S-M0 cable tie provides reliable bundling for indoor/outdoor installations requiring weather resistance. Standard cross section, 14.5 in (368mm) long with 50 lb (222 N) minimum loop tensile strength and a 0.06–4.0 in (1.5–101.6mm) bundle diameter range. It is black UV- and weather-resistant Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, GTH-E, and GS4H-E tools for fast installation. Std. pkg. qty. 1000.
Specifications
Packaging Details
- UPC
- 07498354094
- Standard Package Volume Ft3
- 0.4421
- Std Package Height In
- 4.8
- Std Package Length In
- 16.85
- Std Package Width In
- 14.3
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1000
- Standard Carton Volume Ft3
- 2.2103
- Std Carton Height In
- 16
- Std Carton Length In
- 23.05
- Std Carton Width In
- 11.05
- Std Ctn Qty
- 5000
- EAN
- 00074983540945
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 1,000.0000
- Pallet Volume
- 53.046174
- RoHS Compliant
- Compliant
GTIN Package00074983540945
Standard Package Weight Pounds6.0627
Std Package Height MM121.92
Std Package Length MM427.99
Std Package Width MM363.22
UOM EA PKPK
GTIN Carton50074983540940
Standard Carton Weight Pounds30.3135
Std Carton Height MM406.4
Std Carton Length MM585.47
Std Carton Width MM280.67
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity120,000
Pallet Weight727.5240
Specifications
- Country of Origin
- Costa Rica, Malaysia
- Product Segment
- IEI
- Product Type
- Premium Cable Tie
- Maximum Bundle Diameter (In.)
- 4
- Minimum Installation Temperature (°F)
- -4
- Minimum Operating Temperature (°F)
- -76
- Overall Length (In.)
- 14.5
- Maximum Operating Temperature (°C)
- 85
- Material
- Nylon 6.6
- Minimum Loop Tensile Strength (lb)
- 50
- Body Thickness (mm)
- 1.3
- Minimum Bundle Diameter (mm)
- 1.5
- Maximum Bundle Diameter (mm)
- 102
- Minimum Bundle Diameter (In.)
- 0.06
- Air Handling Space
- AH-2 Plenum
Any Reason Not to SellN
Body Thickness (In.)0.052
Minimum Loop Tensile Strength (N)222
Resistance PropertiesUV-Resistant
ColorBlack
Maximum Operating Temperature (°F)185
Overall Length (mm)368
EnvironmentIndoor/Outdoor
Minimum Operating Temperature (°C)-60
Body Width (mm)4.8
For Use WithGTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
Body Width (In.)0.19
Minimum Installation Temperature (°C)-20
Flammability RatingUL 94 V-2
