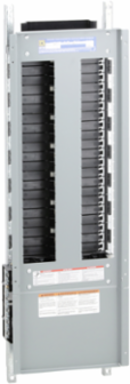

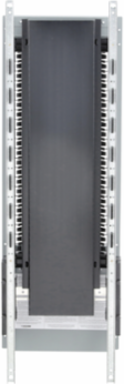

Square D NF442L1C NF Panelboard Interior, 125A Main Lugs, 42 Spaces, 4 Wire, 600Y/347V AC
- MPN: NF442L1C
- UPC: 785901686187
- PPN: SCH-NF442L1C
CAD
$1409.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 125A 600Y/347 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Lug connections will accept 6 AWG to 2/0 AWG copper or aluminum wire. The interior is 33 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- EDB/EDG/EDJ
- Material
- copper
Loadcentre TypeMain lugs
Complementary
- Height
- 33 in
- Enclosure Nominal Depth
- 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
- [In] Rated Current
- 125 A
- Width
- 10.44 in
- Number Of Spaces
- 42
- Net Weight
- 15.876 kg
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
Connections - Terminalslug line AWG 6...AWG 2/0 aluminum/copper || lug neutral AWG 6...AWG 2/0 aluminum
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
[Iu] Rated Interrupted Current65 kA
Wiring Configuration4-wire
Network Number Of Phases3 phases
Enclosure Nominal Width20 in
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404020EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Environment
- Standards
- CSA C22.2 || UL 67
