Square D

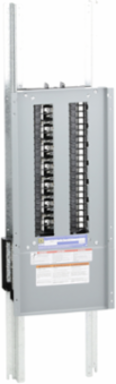

Square D NQ442L4C Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
  • MPN: NQ442L4C
  • UPC: 785901507918
  • PPN: SCH-NQ442L4C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2119.12/ EA

Description

This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1404010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions

Specifications

Circuit Breaker Type
QOB || QOB-VH || QHB
Material
copper
Product Or Component Typeinteriors
Loadcentre TypeMain lugs

Complementary

Height
45 in
Tightening Torque
31.07-33.90 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² AWG 1/0...300 kcmil)
Number Of Spaces
42
Network Number Of Phases
3 phases
Enclosure Nominal Depth
5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
Width
10.44 in
Enclosure Nominal Width
20 in
Connections - Terminalslug line AWG 1/0...750 kcmil aluminum || lug neutral AWG 1/0...750 kcmil aluminum
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Enclosure Nominal Height50 in
Net Weight12.09 kg
[In] Rated Current400 A
Wiring Configuration4-wire
[Ue] Rated Operational Voltage240 V AC || 48 V DC

Environment

Standards
CSA || UL

Downloads
