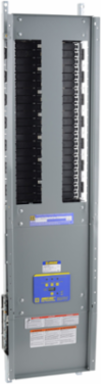

Panelboard Interior, 400A, 42 Pole Spaces, 3 Phase, 600Y/347 VAC
Square D

Square D NF442L4TVS812 Panelboard Interior, 400A, 42 Pole Spaces, 3 Phase, 600Y/347 VAC

  • MPN: NF442L4TVS812
  • UPC: 785901501985
  • PPN: SCH-NF442L4TVS812
Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric NF442L4TVS812 is a robust panelboard interior designed for reliable power distribution in complex electrical systems. With a substantial capacity of 400A and 42 pole spaces, it accommodates a wide range of electrical needs across various applications. This three-phase panelboard operates at an impressive 600Y/347 VAC, ensuring efficient voltage management and enhanced performance in demanding environments. Engineered by Schneider Electric, this product exemplifies durability and versatility, making it an essential component for modern load centers and panel boards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico, United States

Complementary Attributes

Line Rated Current
400 A

Important Information Attributes

Persona Type Ids
EU, LC, OM
Tightening Torque
42.37-42.37 N.m 53.48-152 mm² (1/0 AWG...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (1/0 AWG...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (1/0 AWG...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (1/0 AWG...750 kcmil)
[Ipk] Rated Peak Withstand Current
60 kA between phase and neutral, 60 kA between phase and ground100 kA between neutral and ground
Carbon Footprint Of The Distribution Phase [A4]
0.915196603, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.2524337283, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
4 502 kg CO2 eq., 4501.8730310263
Local Publishable Date
2025-11-13
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
Outside of Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
3
Function Option Id
STANDARD
Market Segmentation Id
COMMERCIAL
Product Kit Identifier
N
Energy Efficiency Optimized
False
Material
aluminium
Phase
3 phase 4 wires
Product Destination
surge protection device, 120 kA 400 V, 150 V
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
4 531 kg CO2 eq.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67,UL 50E and CSA22.2
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
10091.52
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Height Nominal
64 in
[Ue] Rated Operational Voltage
600Y/347 V AC
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8538100000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL, CSA
Connections - Terminalslug line 1/0 AWG...750 kcmil aluminium, lug neutral 1/0 AWG...750 kcmil aluminium
Carbon Footprint Of The End-of-life Phase [C1 To C4]8 kg CO2 eq., 7.7124085387
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 20.6642813646
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Circuit Breaker TypeEDB/EDG/EDJ
Load Center Typemain lugs
Number Of Spaces42
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2303002EN
Pep Verification Date2023-07-15
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %94
Width Nominal10.44 in
[Iu] Rated Interrupted Current25 kA
Package Weight(Lbs)3.175 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
4531.4173512608
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303002EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Phase
3 phase 4 wires

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
