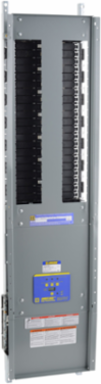

Square D NF442L4TVS412C NF Panelboard Interior 400A 3-Phase 42 Spaces Copper Bus
- MPN: NF442L4TVS412C
- UPC: 785901927785
- PPN: SCH-NF442L4TVS412C
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 400A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 64 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- EDB/EDG/EDJ
- Material
- copper
Loadcentre TypeMain lugs
Complementary
- Height
- 64 in
- Enclosure Nominal Depth
- 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
- [Ipk] Rated Peak Withstand Current
- 60 kA between phase and neutral || 60 kA between phase and ground || 100 kA between neutral and ground
- [Iu] Rated Interrupted Current
- 65 kA
- Wiring Configuration
- 4-wire
- Enclosure Nominal Height
- 68 in
- Net Weight
- 3.175 kg
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
Connections - Terminalslug line AWG 1/0...750 kcmil aluminum || lug neutral AWG 1/0...750 kcmil aluminum
Tightening Torque31.07-33.90 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² AWG 1/0...300 kcmil)
[In] Rated Current400 A
Width10.44 in
Number Of Spaces42
Network Number Of Phases3 phases
Product Destinationsurge protection device, 120 kA 400 V, 150 V
Environment
- Standards
- UL 67 || CSA C22.2
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404020EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
