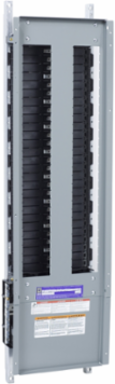

Square D NF454L6C Panelboard Interior 600A, 54 Pole, 3 Phase, Copper Bus, 4 Wire

MPN: NF454L6C
PPN: SCH-NF454L6C
UNSPSC: 39121112

$2280.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The NF454L6C Panelboard Interior from Schneider Electric is designed to meet the demands of modern electrical distribution with exceptional performance and reliability. This robust panelboard features a 600A capacity and accommodates up to 54 poles, providing ample circuit capacity for complex electrical systems. Engineered for three-phase power applications, it utilizes a durable copper bus for superior conductivity and efficiency. The four-wire configuration ensures versatility in installation, making it an ideal choice for both commercial and industrial environments where power distribution and protection are critical.

Features

Interiors are field convertible to top or bottom feed
UL Listed and CSA rated to 600 A at 240, 208Y/120, and 120/240 Vac
NEMA Type 1, 2, 3R, 4, 4X, 5, and 12 enclosures
Suitable for use as service equipment
Copper and aluminum, mechanical and crimp lugs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	19051 g

Complementary Attributes

Line Rated Current	600 A
Iu Rated Interrupted Current	65 kA

Ue Rated Operational Voltage	600Y/347 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM
Tightening Torque	42.37-42.37 N.m 53.48-152 mm² (1/0 AWG...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (1/0 AWG...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (1/0 AWG...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (1/0 AWG...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (1/0 AWG...750 kcmil)
Carbon Footprint Of The Distribution Phase A4	5.4914927702, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.6521677389, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 502 kg CO2 eq., 4501.804851752
Local Publishable Date	2025-11-13
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	copper
Phase	3 phase 4 wires
Returnability	No
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	58 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	94

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Connections Terminals	lug line 1/0 AWG...750 kcmil aluminium, lug neutral 1/0 AWG...750 kcmil aluminium
Carbon Footprint Of The End Of Life Phase C1 To C4	46 kg CO2 eq., 46.4590928149
Carbon Footprint Of The Manufacturing Phase A1 To A3	279 kg CO2 eq., 279.3505452521
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Circuit Breaker Type	EDB/EDG/EDJ
Load Center Type	main lugs
Number Of Spaces	54
Product Availability	Stock - Normally stocked in distribution facility
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	4 835 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	10.44 in
Customs Code	8538908160
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67 UL 50E and CSA22.2
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	10091.52

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	4834.7581503281
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-15
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2303003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303003EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
