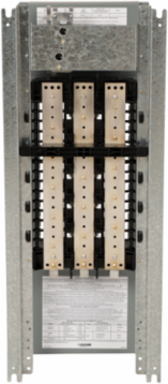

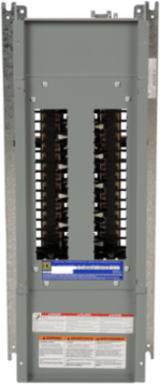

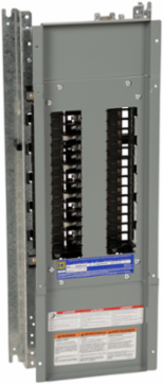

Square D NQ430L1C14 NQ Panelboard Interior, 100A, 30 Spaces, 3 Phase, 14 Inch Width
- MPN: NQ430L1C14
- UPC: 785901661436
- PPN: SCH-NQ430L1C14
CAD
$1057.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for nonlinear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 30 circuits and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 27 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
Features
- Featuring 30 available pole spaces in a 3-phase, 4-wire configuration, this 100 Amp interior gives electrical contractors ample room for complex circuit layout routing. The compact design accepts both QO plug-on and QOB bolt-on branch circuit breakers up to 100A on both sides of the interior, letting you blend robust breaker mounting styles without needing entirely separate enclosures.
- Purpose-built for 14-inch wide NEMA 1 enclosures, this space-saving interior is explicitly tailored for shallow wall cavities and congested utility corridors. This slim profile gives engineering teams the flexibility to specify robust three-phase distribution in cramped retrofit environments.
- This electrical interior supports short-circuit current ratings (SCCR) up to 65 kA maximum, depending directly on the specific interrupting capacity of the installed branch breakers. This high-threshold safety headroom ensures fully compliant, code-approved integration into industrial branch circuits and robust commercial mains environments.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Loadcentre Type
- Main lugs
Product Or Component Typeinteriors
Materialcopper
Complementary
- Height
- 40 in
- Enclosure Nominal Depth
- 5.75 in NEMA 1
- [In] Rated Current
- 100 A
- Width
- 8.63 in
- Number Of Spaces
- 30
- Network Number Of Phases
- 3 phases
- [Ue] Rated Operational Voltage
- 240 V AC || 48 V DC
Connections - Terminalslug line AWG 6...AWG 2/0 aluminum || lug neutral AWG 6...AWG 2/0 aluminum
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Wiring Configuration4-wire
Enclosure Nominal Height32 in
Enclosure Nominal Width14 in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Environment
- Standards
- CSA || UL
