Square D

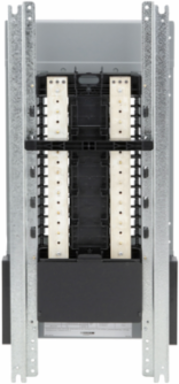

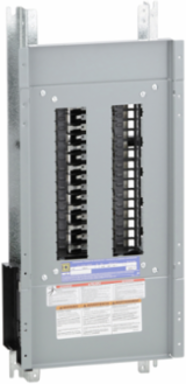

Square D NQ30L2C Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
  • MPN: NQ30L2C
  • UPC: 785901502029
  • PPN: SCH-NQ30L2C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$750.44/ EA

Description

This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Specifications

Complementary

Height
27 in
[Iu] Rated Interrupted Current
10 kA || 22 kA || 65 kA
Enclosure Nominal Height
32 in
Enclosure Nominal Depth
5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
Width
10.44 in
Enclosure Nominal Width
20 in
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
Number Of Spaces30
Network Number Of Phases1 phase
[In] Rated Current225 A
Wiring Configuration3-wire
[Ue] Rated Operational Voltage240 V AC || 48 V DC

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1404010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions

Specifications

Circuit Breaker Type
QOB || QOB-VH || QHB
Material
copper
Product Or Component Typeinteriors
Loadcentre TypeMain lugs

Environment

Standards
UL || CSA

Downloads
