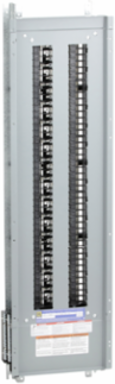

Square D NQ484L2C Panelboard Interior, Main Lugs, 225A, 84 Pole Spaces, 3 Phase, 240V AC
- MPN: NQ484L2C
- UPC: 785901502524
- PPN: SCH-NQ484L2C
CAD
$1713.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Loadcentre Type
- Main lugs
Product Or Component Typeinteriors
Materialcopper
Complementary
- Height
- 45 in
- Enclosure Nominal Depth
- 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
- [In] Rated Current
- 225 A
- Width
- 10.44 in
- Number Of Spaces
- 84
- Network Number Of Phases
- 3 phases
- [Ue] Rated Operational Voltage
- 240 V AC || 48 V DC
Connections - Terminalslug line AWG 6...350 kcmil aluminum || lug neutral AWG 6...350 kcmil aluminum
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Wiring Configuration4-wire
Enclosure Nominal Height50 in
Enclosure Nominal Width20 in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Reach Free Of SvhcYes
Environment
- Standards
- UL || CSA
