Square D

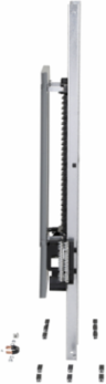

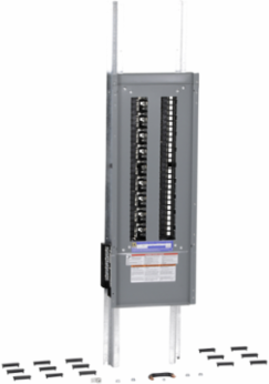

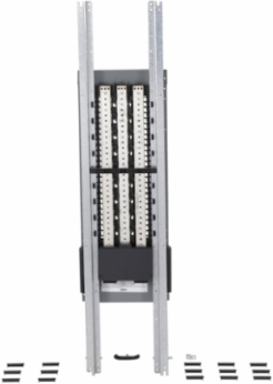

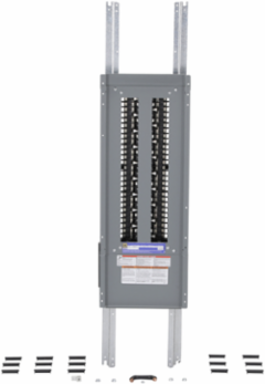

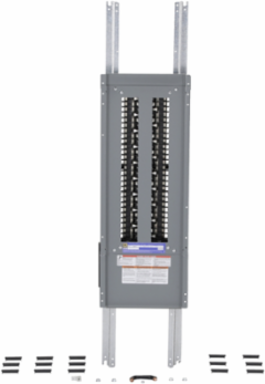

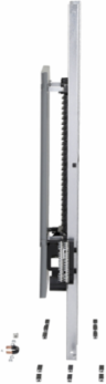

Square D NQ454L4C Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
  • MPN: NQ454L4C
  • UPC: 785901952084
  • PPN: SCH-NQ454L4C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2319.38/ EA

Description

This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a 3 phase, 4 wire panelboard with a plated copper bus and tin plated aluminum lugs suitable for aluminum or copper. The phase lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 350kcmil conductors, and the neutral lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 300kcmil conductors. It has a voltage rating of 240VAC or 48VDC and is rated for 400A line current and 10kA, 22kA, and 65kA interrupted current. It has 54 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.

Specifications

Complementary

Connections - Terminals
lug line AWG 1/0...750 kcmil aluminum || lug neutral AWG 1/0...750 kcmil aluminum
[In] Rated Current
400 A
Wiring Configuration
4-wire
Network Number Of Phases
3 phases
[Ue] Rated Operational Voltage
240 V AC || 48 V DC
Tightening Torque31.07-33.90 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² AWG 1/0...300 kcmil)
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Number Of Spaces54
Net Weight12.34 kg

Specifications

Circuit Breaker Type
QOB || QOB-VH || QHB
Loadcentre Type
Main lugs
Product Or Component Typeinteriors
Materialcopper

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
