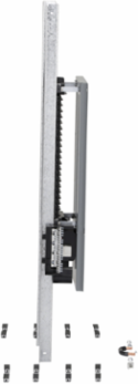

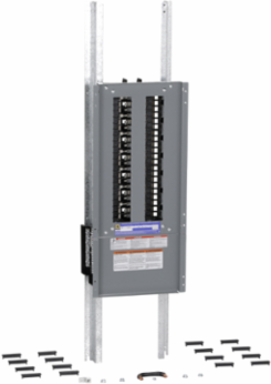

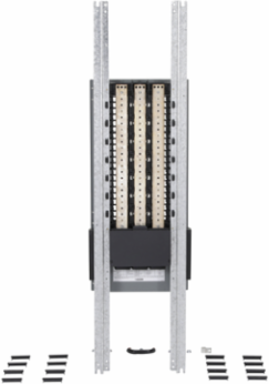

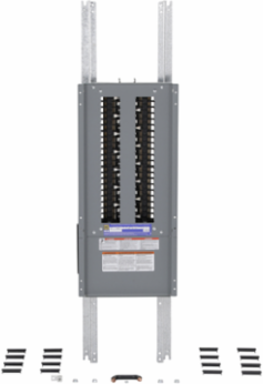

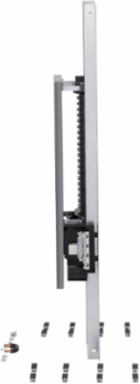

Square D NQ442L6C Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Panelboard interior, NQ, main lugs, 600A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
  • MPN: NQ442L6C
  • UPC: 785901498698
  • PPN: SCH-NQ442L6C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2534.37/ EA

Description

This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a 3 phase, 4 wire panelboard with a plated copper bus and tin plated aluminum lugs suitable for aluminum or copper. The phase lugs accept 2-1/0 AWG to 750kcmil conductors, and the neutral lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 300kcmil conductors. It has a voltage rating of 240VAC or 48VDC and is rated for 600A line current and 10kA, 22kA, and 65kA interrupted current. It has 42 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.

Specifications

Complementary

Height
45 in
Enclosure Nominal Depth
5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
[In] Rated Current
600 A
Width
10.44 in
Number Of Spaces
42
Network Number Of Phases
3 phases
Enclosure Nominal Width
20 in
Connections - Terminalslug line AWG 1/0...750 kcmil aluminum || lug neutral AWG 1/0...750 kcmil aluminum
Tightening Torque31.07-33.90 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² AWG 1/0...300 kcmil)
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Wiring Configuration4-wire
Enclosure Nominal Height62 in
Net Weight13.37 kg
[Ue] Rated Operational Voltage240 V AC || 48 V DC

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1404010EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Reach Free Of SvhcYes

Environment

Standards
CSA || UL

Specifications

Circuit Breaker Type
QOB || QOB-VH || QHB
Loadcentre Type
Main lugs
Product Or Component Typeinteriors
Materialcopper
