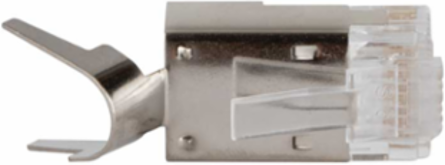

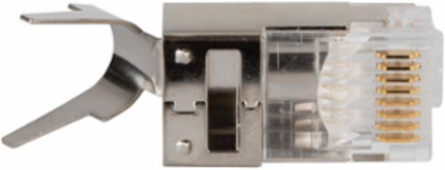

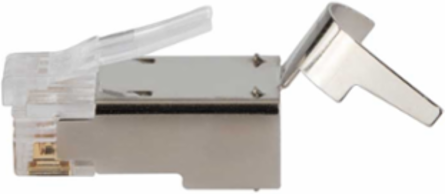

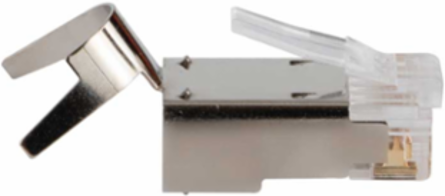

Klein Tools VDV826-754 Pass-ThruTM RJ45 CAT6A Shielded Data Plugs, 100-Pack, 8P 8C, 0.043-Inch Max Diameter
- MPN: VDV826-754
- UPC: 092644583926
- PPN: KLT-VDV826-754
- UNSPSC: 39121449
CAD
$217.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

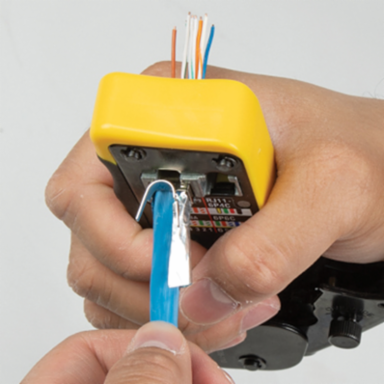

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.
Features
- Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
- For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable

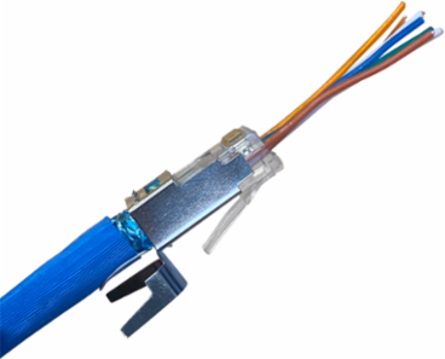

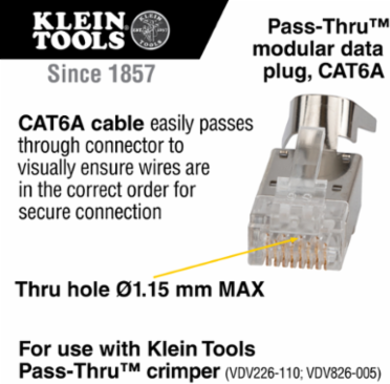

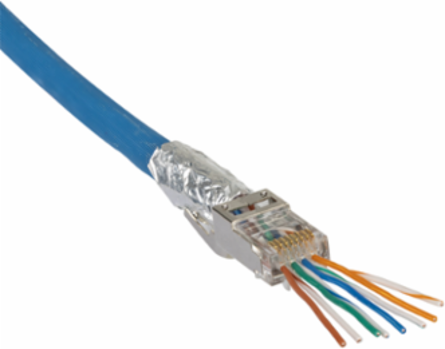

- CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
- Fully compliant with Power Over Ethernet (PoE and PoE+) standards

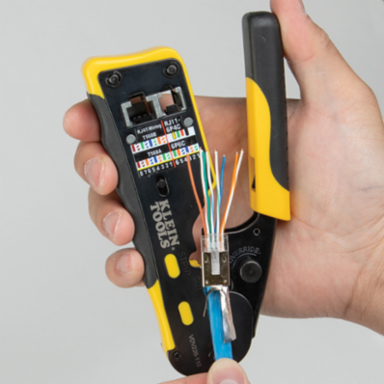

- Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
- 8 position, 8 contact pass through type data plugs for solid or stranded wire
- Category 6A performance per TIA/EIA-568-B.2

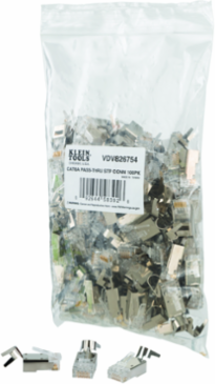

- 100-Pack

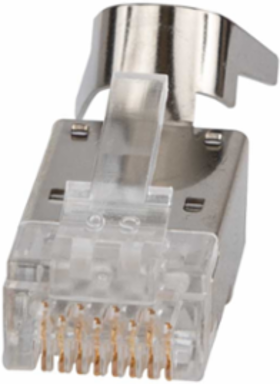

- 50 µ-inch gold plating on all contact surfaces
- Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)
- Pass-Thru™ Technology; Meets All PoE+ Standards
Documentation & Downloads
Specifications
Key Specifications
| Package Quantity | 100 |
|---|---|
| Material | PVC Plastic; Gold Plated Contacts |
| Type | Modular |
| Stranded Conductor Wire | Yes |
| Connector Color | Clear |
| Overall Width (cm) | 1 |
| Overall Height (cm) | 1.5 |
| Overall Width (Inch) | 0.4 |
| Overall Length (Inch) | 0.8 |
| Height | 0.6000 in |
| Depth | 0.8000 in |
| Solid Conductor Wire | Yes |
|---|---|
| Position & Contacts | 8P 8C |
| Application | Data |
| Connector Type | RJ45 |
| Cable Type | CAT6A STP and Larger Diameter CAT6 |
| Overall Height (Inch) | 0.6 |
| Overall Length (cm) | 2 |
| Weight (g) | 289 |
| Weight (oz) | 10.21 |
| Width | 0.4000 in |
| Weight | 0.0010 lbs |
