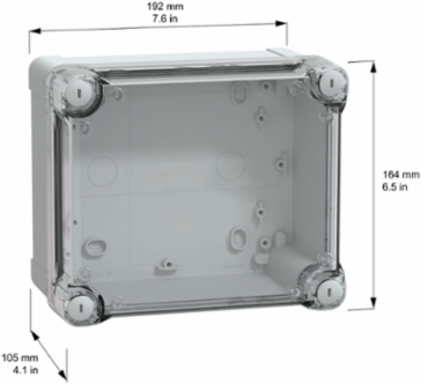

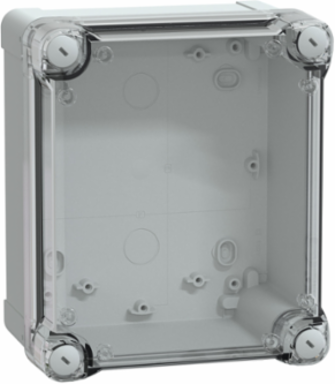

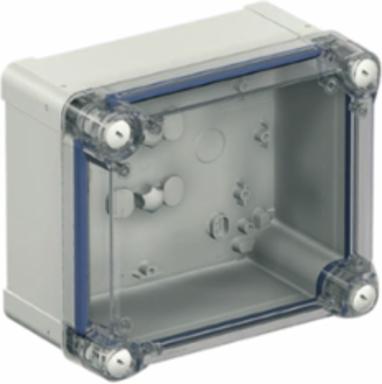

Schneider Electric NSYTBP191610HT Thalassa TBP IP66 IK08 Grey Polycarbonate Enclosure 192mm H x 164mm W x 105mm D
- MPN: NSYTBP191610HT
- PPN: SCH-NSYTBP191610HT
CAD
$101.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This robust enclosure by Schneider Electric is designed to provide exceptional protection for electrical components in demanding environments. Constructed from durable grey polycarbonate, it boasts an IP66 rating ensuring that it is resistant to dust and water ingress, while the IK08 rating indicates its strong resistance to mechanical impacts. Perfectly sized at 192mm in height, 164mm in width, and 105mm in depth, the Thalassa TBP enclosure is not only practical but also suitable for a variety of applications where reliable performance and durability are paramount. Whether you re working on outdoor electrical installations or need to safeguard sensitive equipment, this enclosure offers peace of mind and effective shielding against the elements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary
Depth105 mm
Physical Attributes
- Color
- Gray RAL 7035), Transparent
- Internal Height
- 175 mm
Internal Depth100 mm
Internal Width150 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover4 cover screw
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1911936101680438, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1185046859884728, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cover Fixing
- plastic screws
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- captive screw flat outside sealed area
- Mounting Location
- outdoor (with canopy or shelter and anticondensation valve)
- Product Name
- PanelSeT TBP
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Front Cover
- low transparent cover
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Hungary, HU
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 192 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3925900000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyTÜV, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8 kg CO2 eq., 0.7782147228097985
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.4193201274895118
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2012016EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeone piece moulded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Fire Resistance960 °C
Materialpolycarbonate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeindustrial box
Removable Partscover by captive screws
Software Versionv6.1
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Pep CodeENVPEP2012016EN
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal164 mm
Package Weight(Lbs)600.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -15-60 °C, -15-60 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.507233146455827
- Environmental Disclosure
- ENVPEP2012016EN
- Ip Degree Of Protection
- IP66 conforming to NEMA 4.4X
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-80 °C, -25-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2012016EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2012016EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
